| Turn Series |

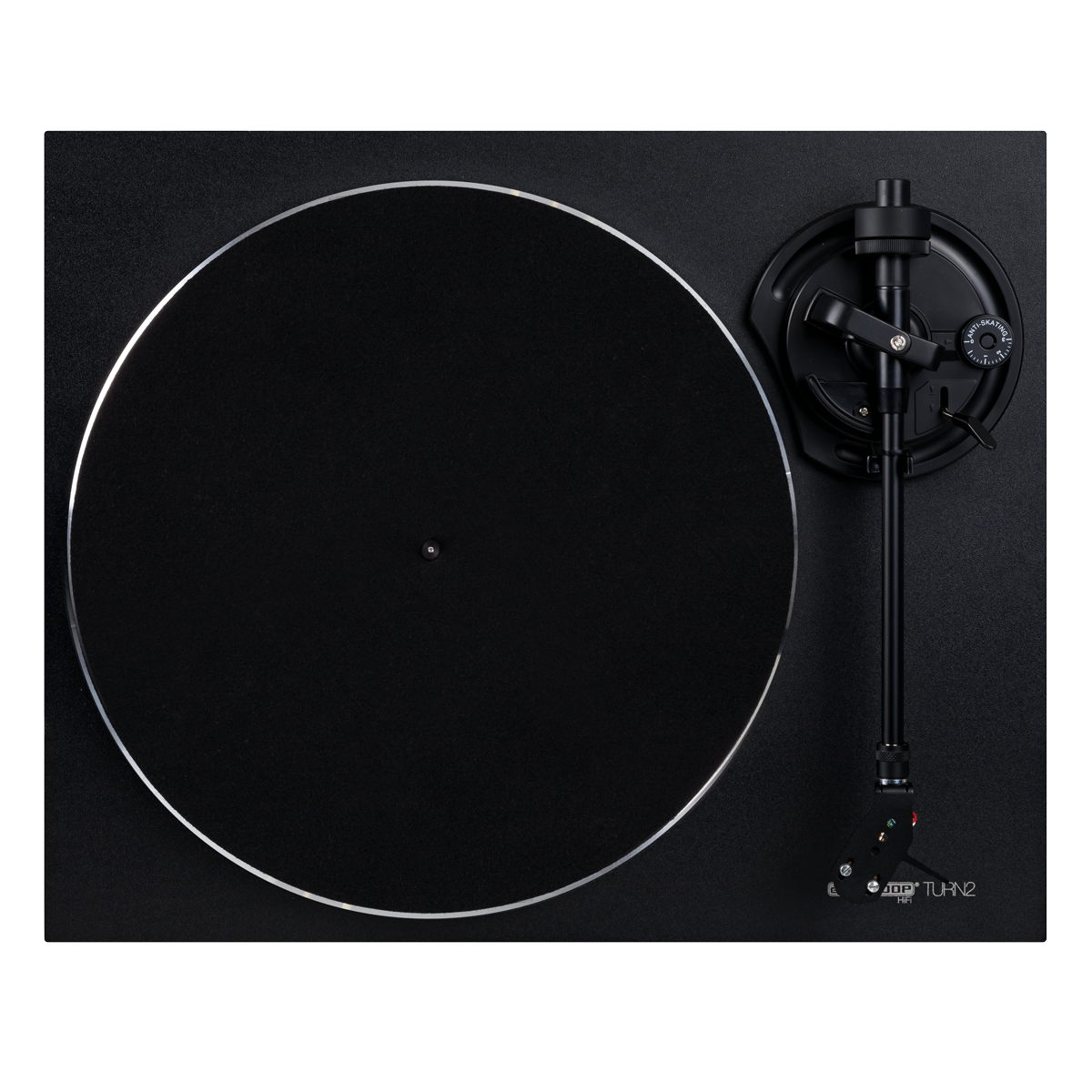

Turn 2 |

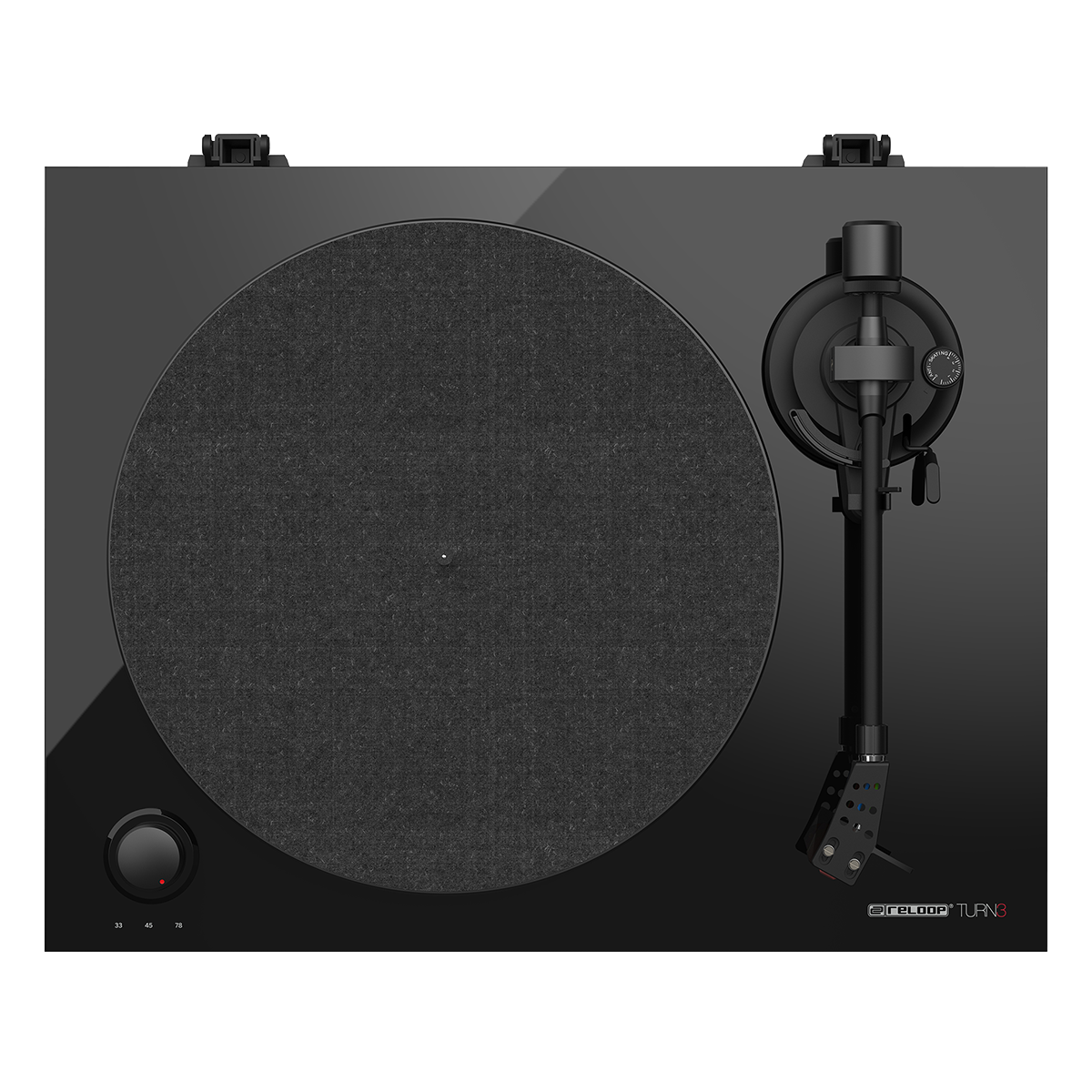

Turn 3 |

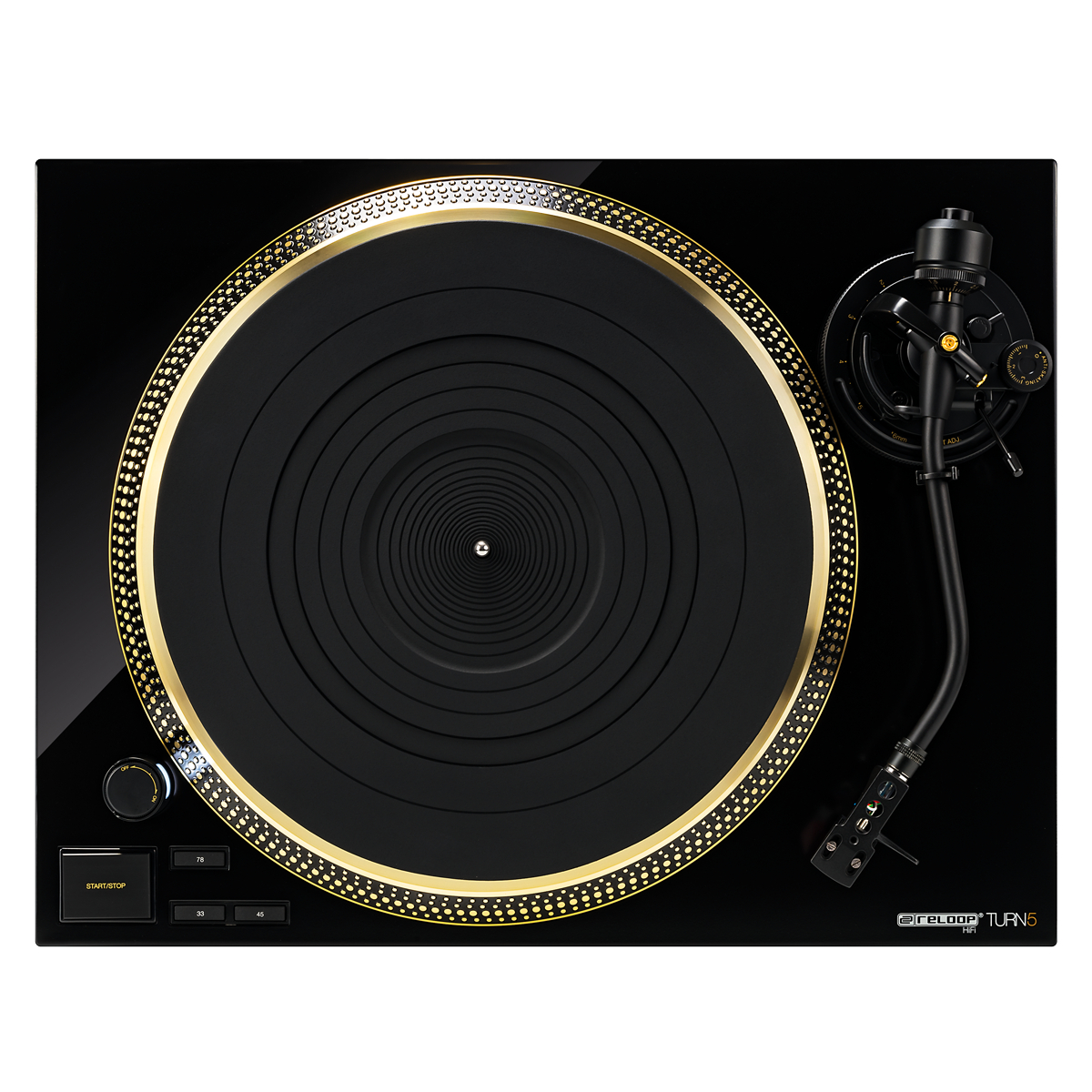

Turn 5 |
||||
|---|---|---|---|---|---|---|---|
| Turntable section | |||||||
| Type | Belt-driven analogue turntable system | Belt-driven semi-automatic turntable system with USB interface | Direct drive manual turntable system | ||||
| Drive | Belt drive | Belt drive with auto stop mechanism | Quartz driven upper-torque direct drive | ||||
| Motor | DC motor | DC motor | 16pole, 3phase, brushless DC motor | ||||
| Turntable speeds | 2 speeds (33 1/3, 45) | 3 speeds (33 1/3, 45, 78 rpm) | 3 speeds, fully manual (33 1/3, 45, 78 rpm) | ||||
| Starting torque | 4500 g/cm | ||||||
| Start-up time / rpm change | less than 0.2 sec. | ||||||
| Wow and flutter | 0.2% WRMS | 0.2% WRMS | 0.01% WRMS | ||||
| S/N ratio | >60 dB or higher | >60 dB or higher | More than 55dB (DIN-B) | ||||
| Brake system | electronic brake | ||||||
| Turntable platter | |||||||
| Material | aluminium die-cast | aluminium die-cast with deadening rubber | aluminium die-cast with deadening rubber | ||||
| Diameter | 300mm | 300mm | 332mm | ||||
| Weight | About 0.5 kg | About 1 kg | About 1.8kg (including rubber mat) | ||||
| Tonearm section | |||||||
| Type | Static balanced straight tonearm | Static balanced straight tonearm | Universal static balanced S-shaped | ||||
| Effective Length | 233mm | 233mm | 230mm | ||||
| Overhang | 15mm | ||||||
| Tracking Error Angle | Less than 3 degrees | ||||||
| VTA Adjustment Range | 0-6 mm | ||||||
| Applicable Cartridge Weight | 3.5~8.g (including headshell is 13~18g) | 3.5~8.g (including headshell is 13~18g) | 3.5~8.5g (including headshell is 13~20g) | ||||
| Anti-Skating Range | 0 – 3g | 0 – 3g | 0 – 3g | ||||
| Terminals | 1x PHONO out (gold-plated) | 1x PHONO / LINE out (gold-plated) 1x USB type B (PCM 48 kHz / 16-bit; Windows & macOS support) |
1x PHONO out (gold-plated) 1x GND earth terminal |
||||
| General | |||||||
| Power supply | DC 12V, 500mA | DC 12V, 500mA | AC 115/230 V, 60/50 Hz (EU/US) AC 100 V, 50/60 Hz (JP) |
||||
| Power Consumption | 6W | 6W | 9 W | ||||
| Dimensions | 420 (W) x 340 (D) x 120 (H) mm (incl. dust cover) |
450 (W) x 352 (D) x 138.7 (H) mm (incl. dust cover) |
458(W) x 368.3(D) x 162.4 (H) mm | ||||
| Weight | 4.54 kg | 7.02 kg | Approx. 13 kg | ||||
| Included Accessories | Turntable platter, dust cover, 2x dustcover hinges, balance counter weight, PHONO RCA Cable, DC power supply with international plugs, felt mat, instruction manual, Ortofon OM10 cartridge, headshell | Turntable platter, dust cover, 2x dustcover hinges, balance counter weight, PHONO RCA cable, DC power supply with international plugs, felt mat, instruction manual, Ortofon 2M Red cartridge, headshell | Turntable platter, dust cover, 2x dustcover hinges, balance counter weight, PHONO RCA cable with earth lead, AC power supply cord, rubber mat, instruction manual, Ortofon 2M Red cartridge & headshell | ||||
| Price | |||||||
| € | 299.- | 479.- | 749.- | ||||
