TurnX

Sound & Quality
par eXcellence.

Reloop HiFi - TURNX

Premium Class
HiFi Turntable System

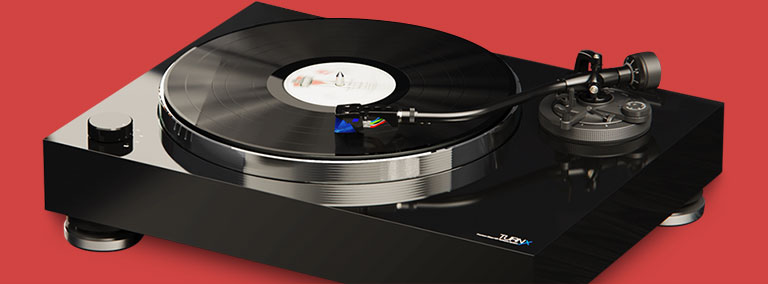

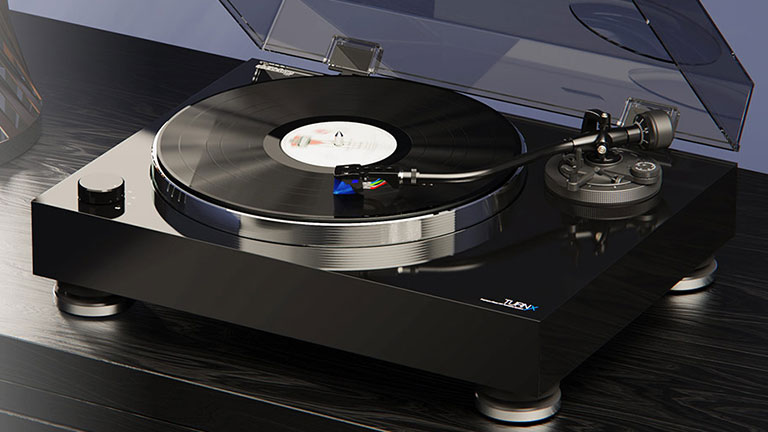

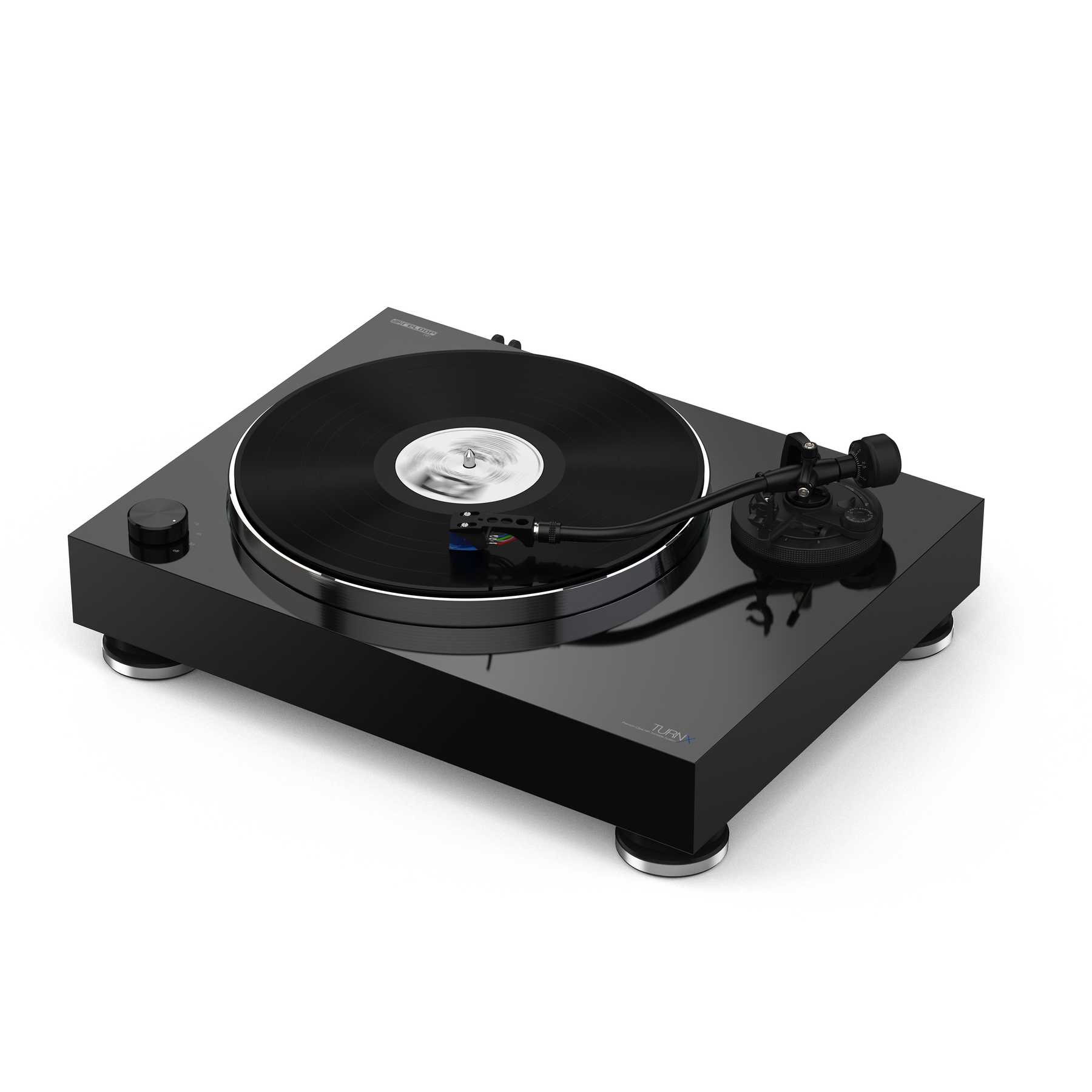

Reloop's Turn X is a quartz-driven, high-end turntable that impresses in more ways than just its sound and premium aesthetics.

Reloop HiFi - TURNX

Designed with
precision from the outset

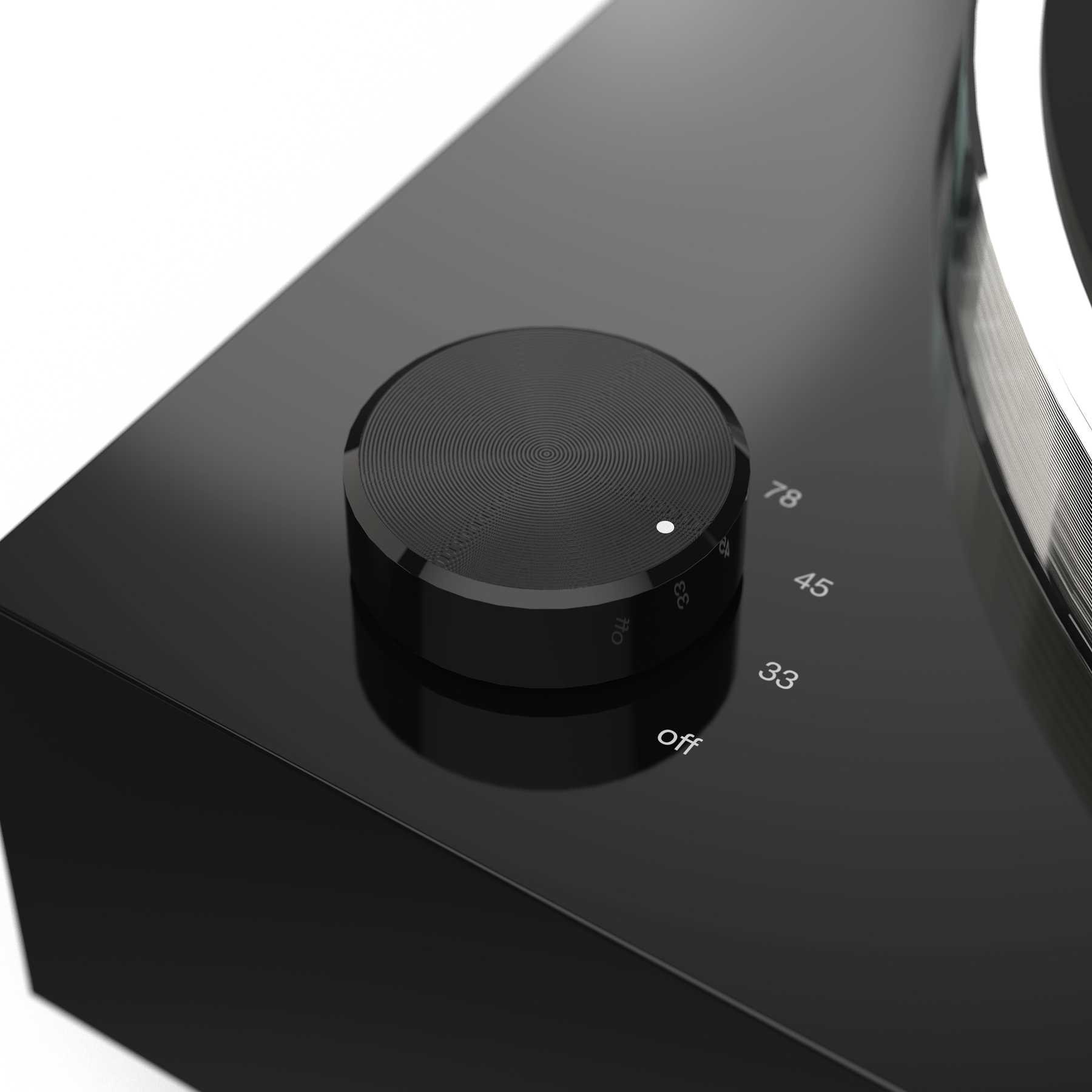

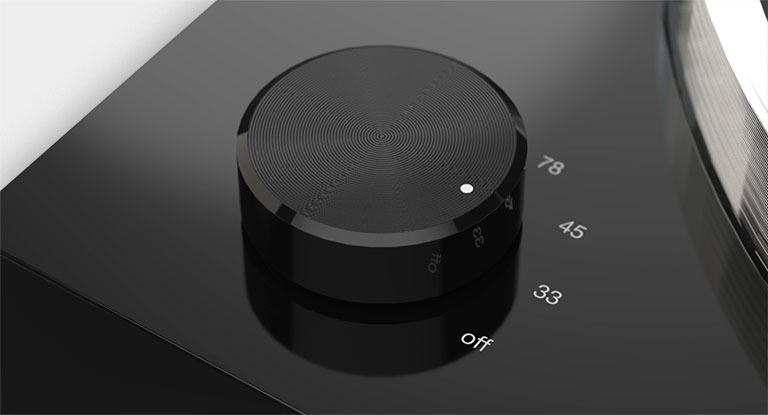

The Turn X's direct-drive DC motor offers incredibly accurate and consistent speeds. The high torque ensures lightning-fast start-up times and minimal variances of just +/-0.03%. The Turn X excels when operated in full manual mode, where its electronic brake and rotary switch for smooth starting and stopping, which also doubles as a speed selector (33, 45 and 78 RPM), shine.

Reloop HiFi - TURNX

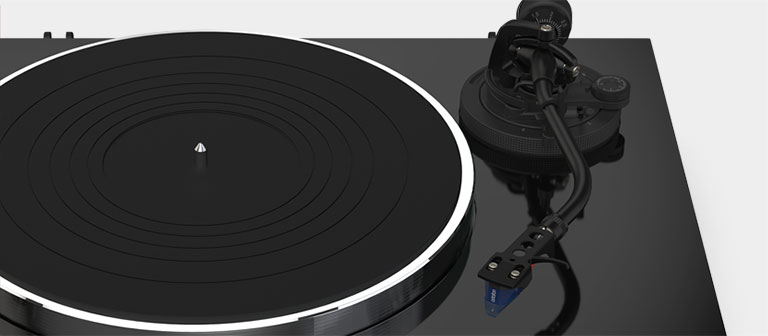

Audiophile tonearm

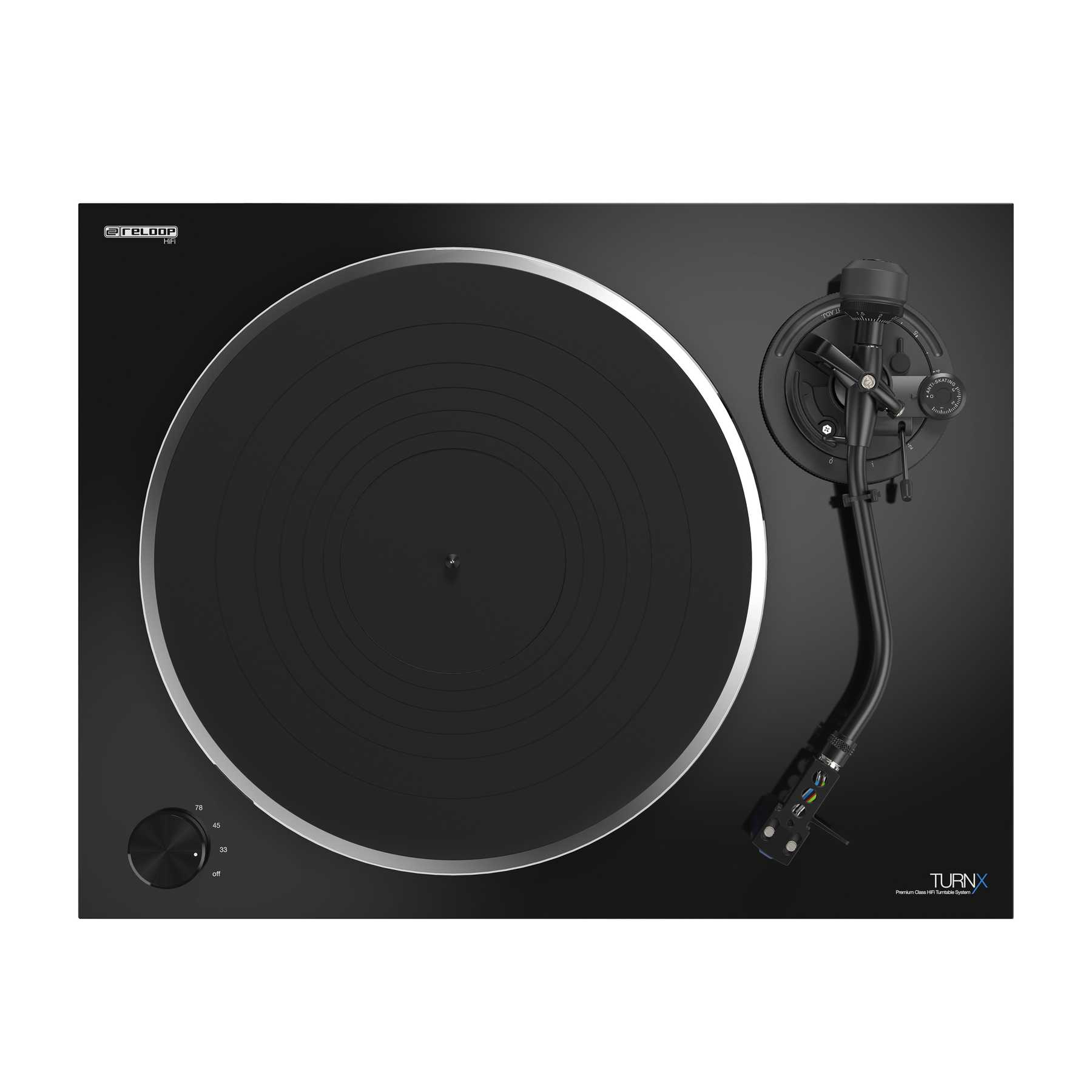

The statically balanced S-shaped tonearm can be adjusted in height to change the cartridge's azimuth (the angle at which the needle approaches the record) and the record's vertical tracking angle (VTA). The tonearm design guarantees free and fluid movement and optimum cartridge performance.

Reloop HiFi - TURNX

Balance perfection

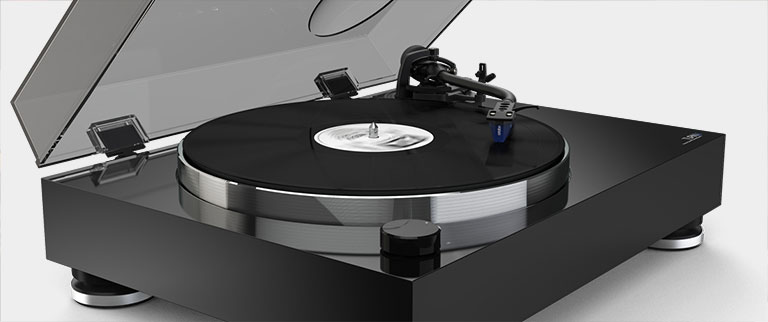

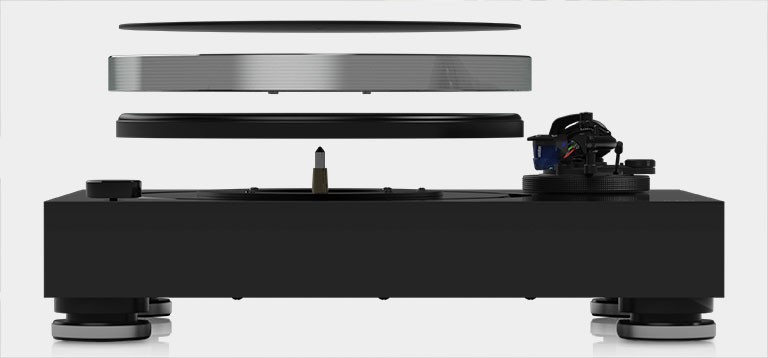

A solid aluminium block supports the record player's precision-machined die-cast platter. Its hefty 2.1 kg, 332 mm diameter and 22.5 mm thickness ensure smooth, even movement. The damping rubber coating on the back of the turntable and the rubber mat provide excellent isolation properties and minimise vibrations.

Reloop HiFi - TURNX

Crystal clear sound quality

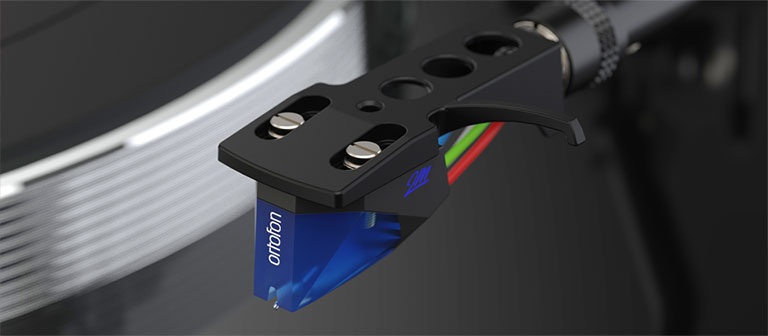

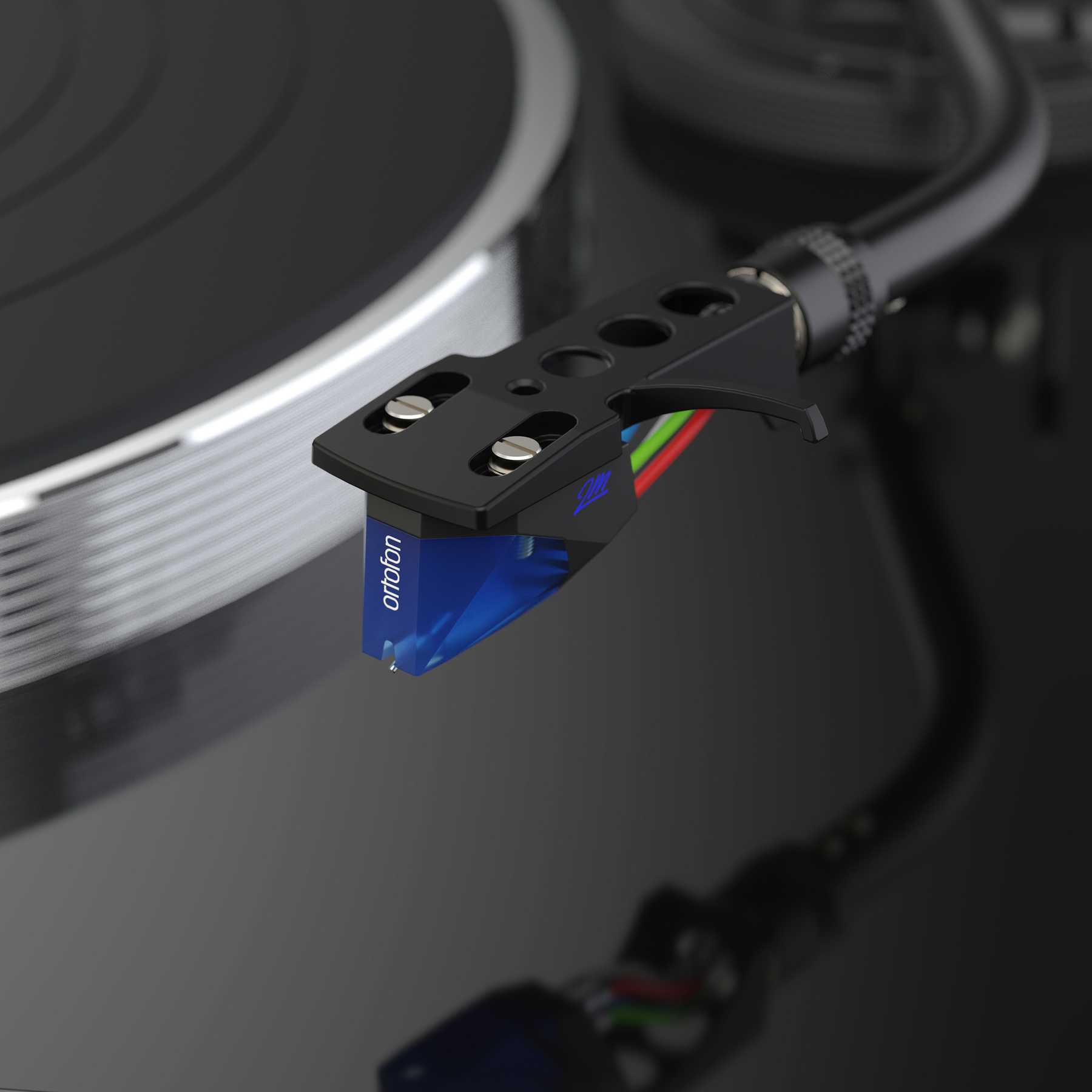

The Turn X has a high-quality Ortofon 2M Blue cartridge pre-installed, ensuring excellent dynamics and sound resolution to satisfy even the most discerning audiophiles. Another highlight: The universal SME connector enables a quick and easy cartridge system change if required.

Reloop HiFi - TURNX

Sound and nothing but sound

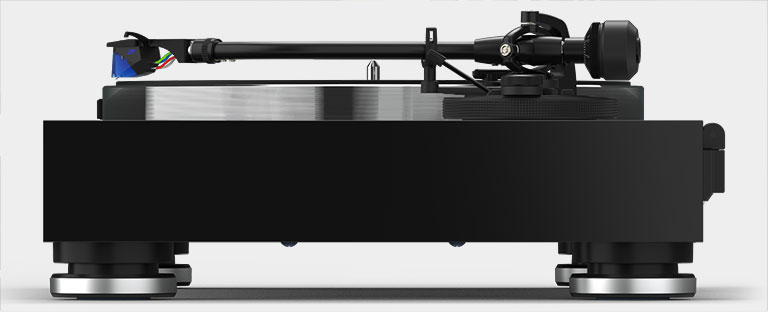

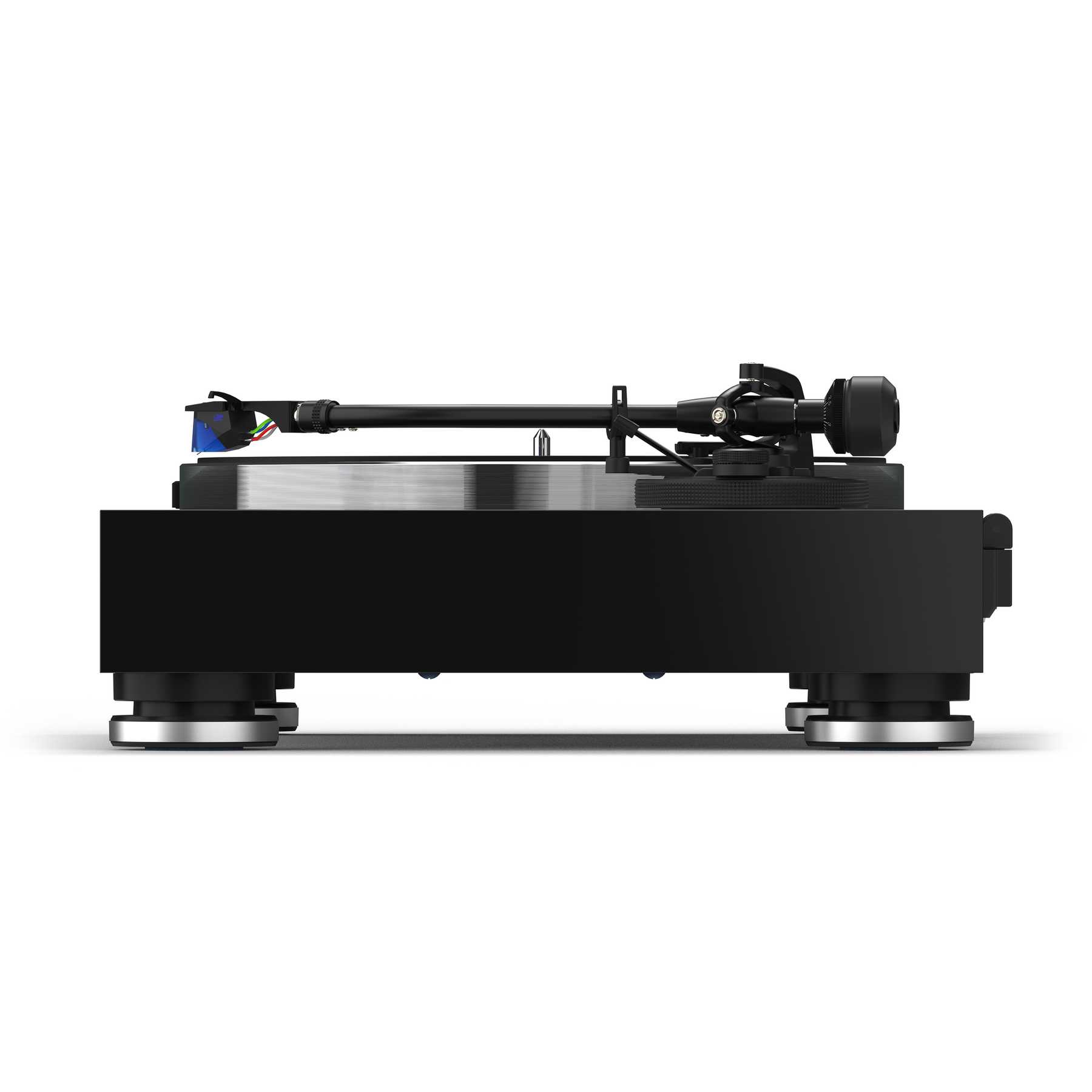

The turntable's solid MDF chassis is exceptionally sturdy and robust, keeping unwanted resonances at bay from the outset. As a bonus, the Turn X is effectively decoupled thanks to the height-adjustable isolator feet.

Reloop HiFi - TURNX

Design without compromise

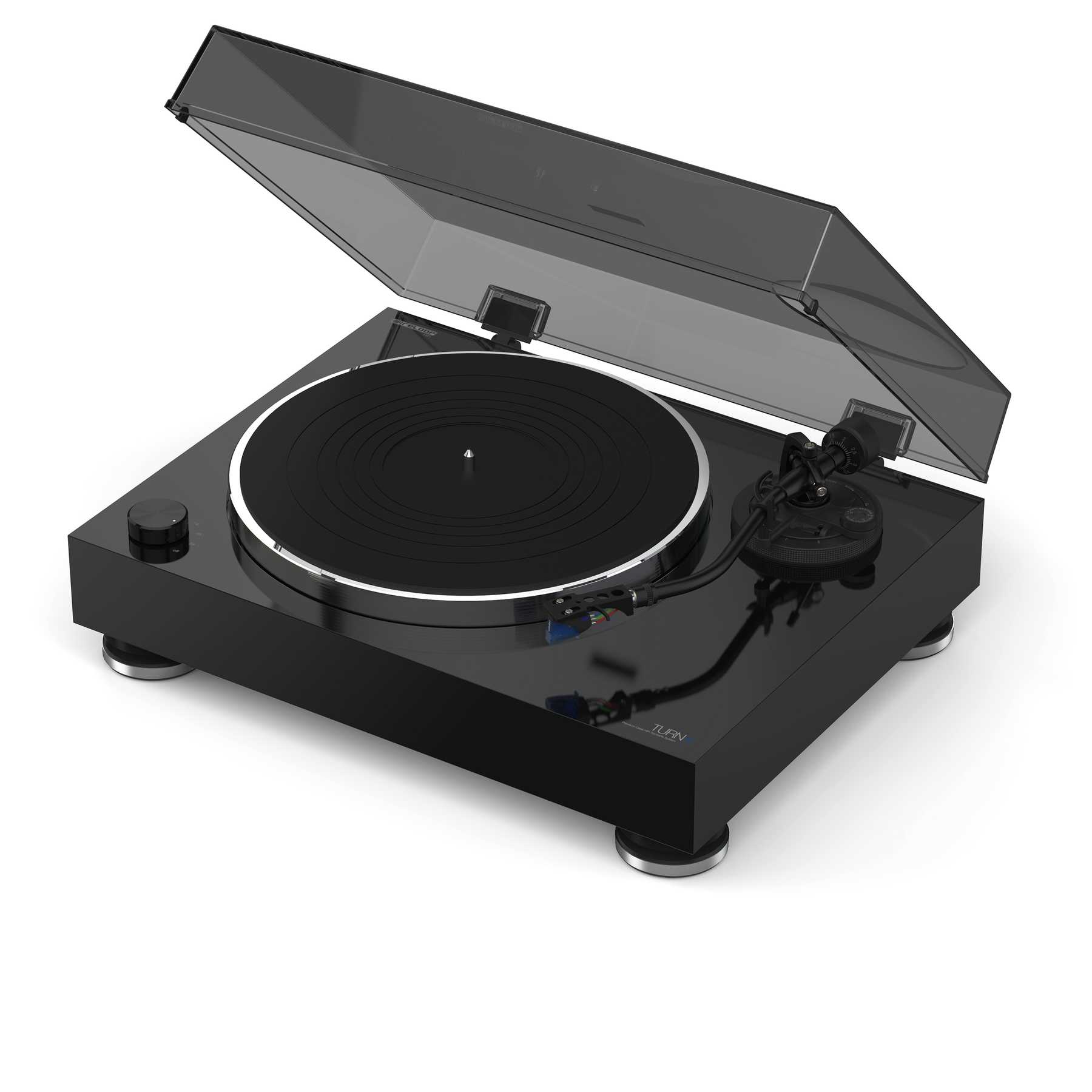

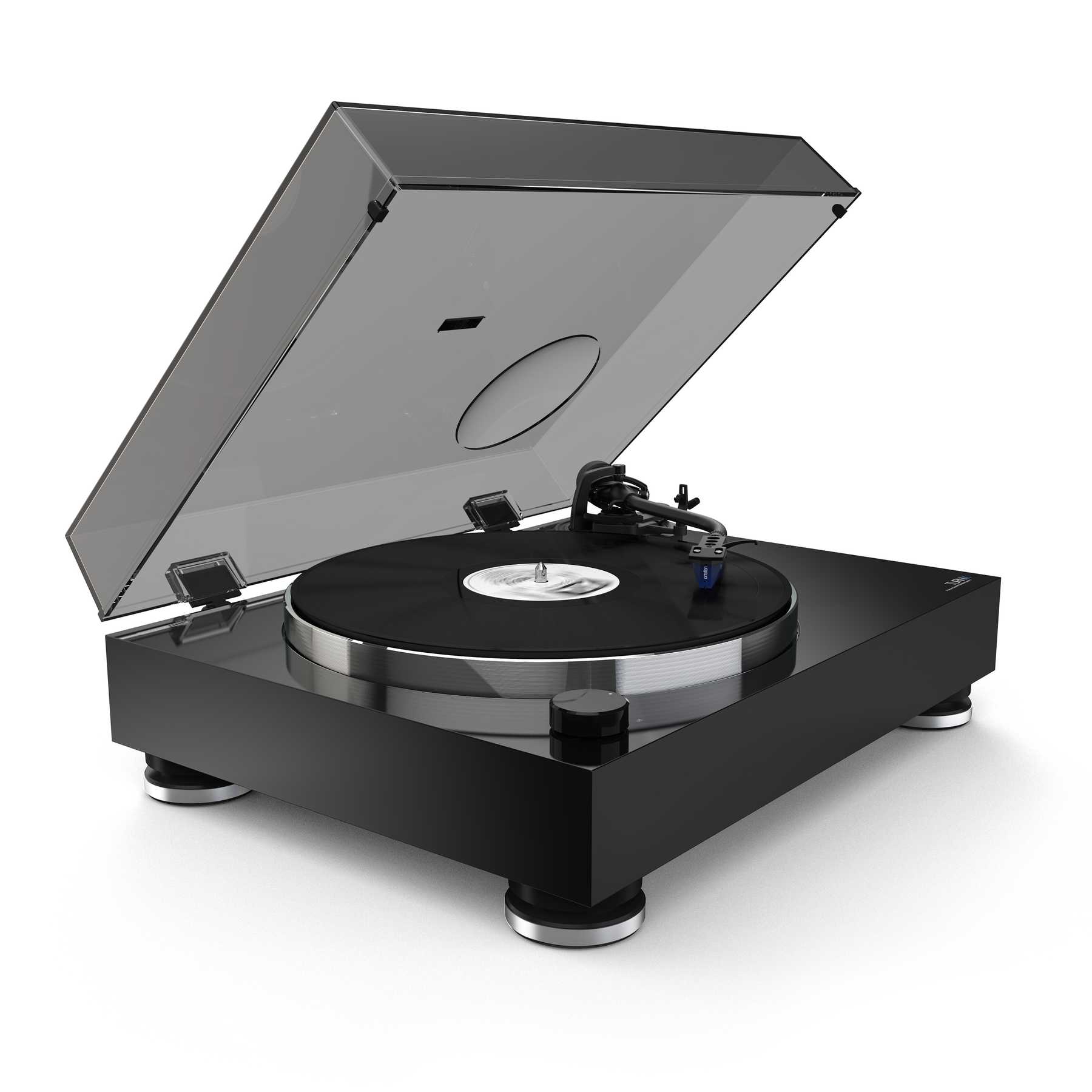

In addition to meeting the exacting demands of vinyl enthusiasts, the Reloop Turn X is a true visual showpiece. The record player's sleek design, sophisticated one-button control, and classy piano lacquer finish make it a real eye-catcher.

Reloop HiFi - TURNX

Attention to detail

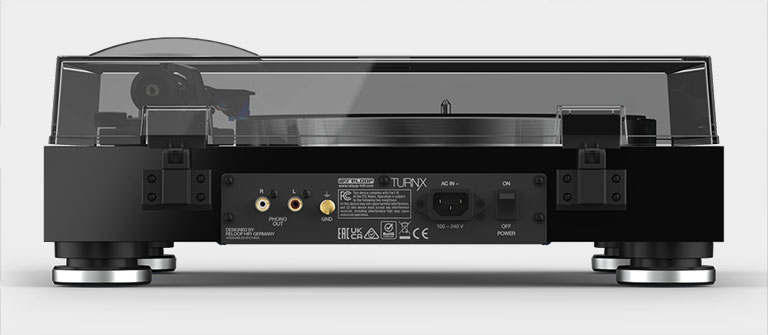

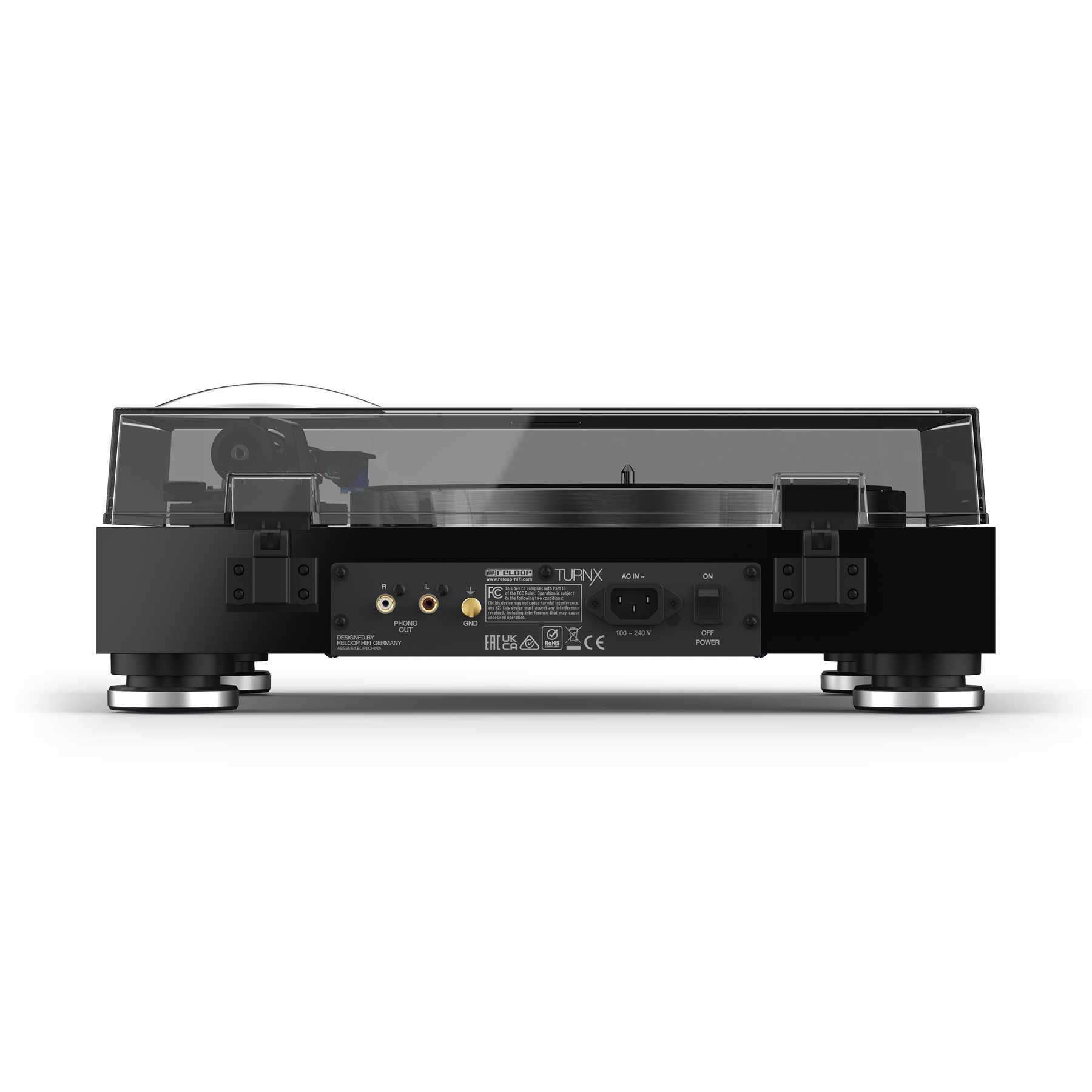

Last but not least, the Turn X features a gold-plated high-resolution phono output and a gold-plated ground connector for optimum signal transfer and corrosion resistance. Interference is reduced even further by the power switch's ultra-low noise insulation.

Reloop HiFi - TURNX

Sound & Quality
par eXcellence.

Reloop HiFi - TURNX

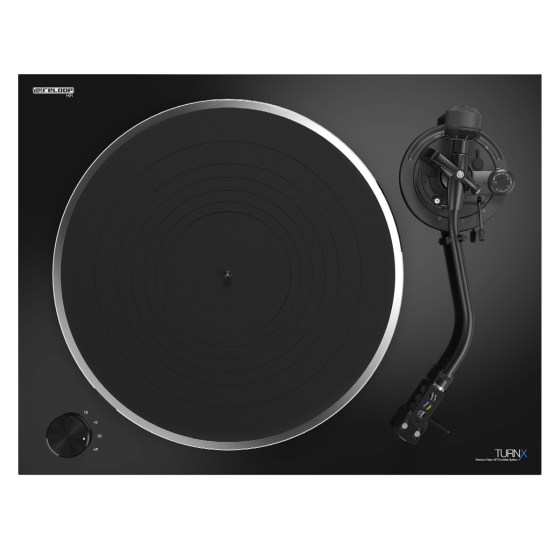

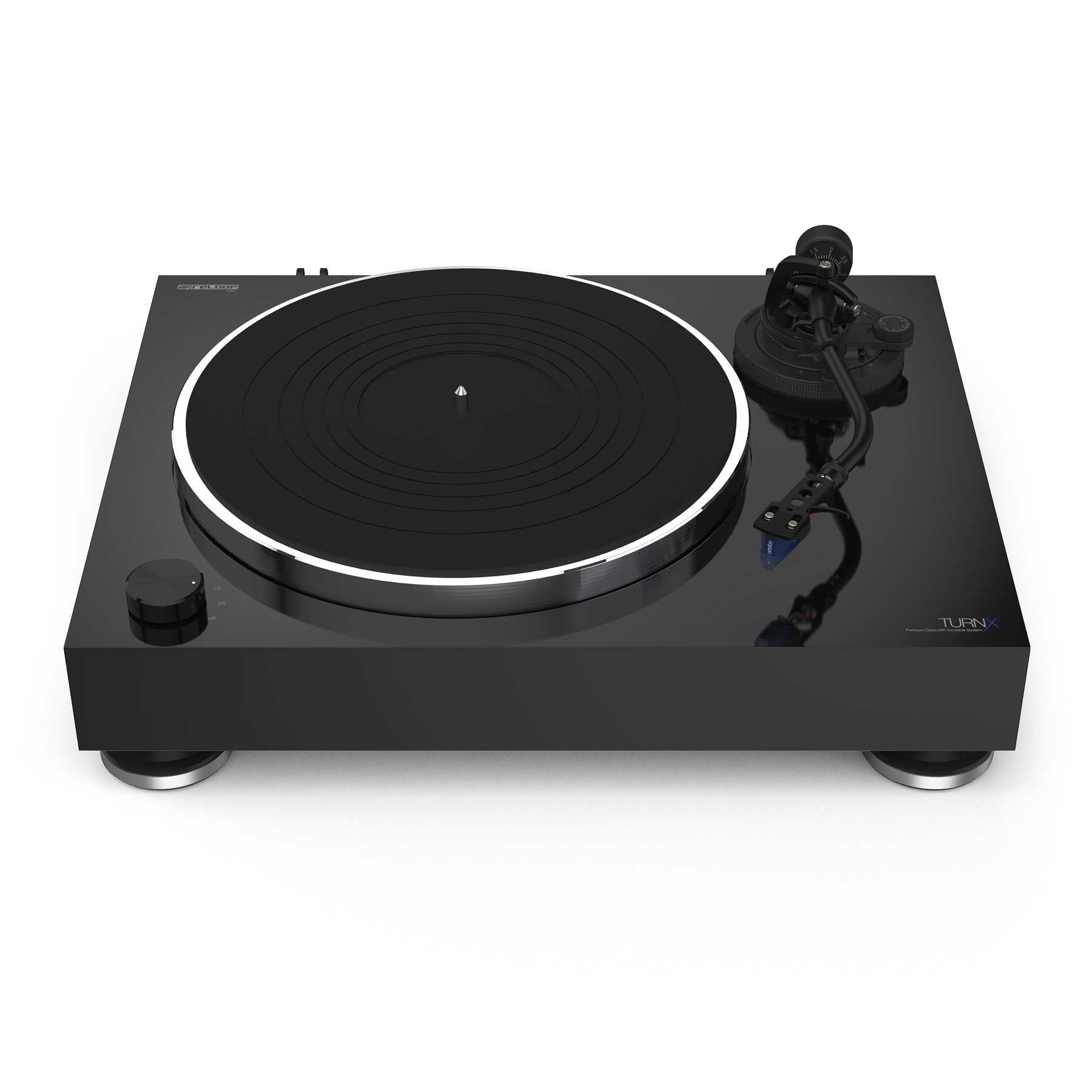

Reloop Turn X

Premium Class HiFi Turntable System

  • Premium HiFi turntable with Ortofon 2M Blue cartridge
  • Super high torque direct drive motor with precision rotation
  • Extra-heavy, CNC machined 22,5 mm thick aluminium platter with rubber damping
€1,299.99

Reloop's Turn X is a quartz-driven, high-end turntable that impresses in more ways than just its sound and premium aesthetics.

Designed with precision from the outset

The Turn X's direct-drive DC motor offers incredibly accurate and consistent speeds. The high torque ensures lightning-fast start-up times and minimal variances of just +/-0.03%. The Turn X excels when operated in full manual mode, where its electronic brake and rotary switch for smooth starting and stopping, which also doubles as a speed selector (33, 45 and 78 RPM), shine.

Balance perfection

A solid aluminium block supports the record player's precision-machined die-cast platter. Its hefty 2.1 kg, 332 mm diameter and 22.5 mm thickness ensure smooth, even movement. The damping rubber coating on the back of the turntable and the rubber mat provide excellent isolation properties and minimise vibrations.

Audiophile tonearm

The statically balanced S-shaped tonearm can be adjusted in height to change the cartridge's azimuth (the angle at which the needle approaches the record) and the record's vertical tracking angle (VTA). The tonearm design guarantees free and fluid movement and optimum cartridge performance.

Crystal clear sound quality

The Turn X has a high-quality Ortofon 2M Blue cartridge pre-installed, ensuring excellent dynamics and sound resolution to satisfy even the most discerning audiophiles. Another highlight: The universal SME connector enables a quick and easy cartridge system change if required.

Design without compromise

In addition to meeting the exacting demands of vinyl enthusiasts, the Reloop Turn X is a true visual showpiece. The record player's sleek design, sophisticated one-button control, and classy piano lacquer finish make it a real eye-catcher.

Sound and nothing but sound

The turntable's solid MDF chassis is exceptionally sturdy and robust, keeping unwanted resonances at bay from the outset. As a bonus, the Turn X is effectively decoupled thanks to the height-adjustable isolator feet.

Attention to detail

Last but not least, the Turn X features a gold-plated high-resolution phono output and a gold-plated ground connector for optimum signal transfer and corrosion resistance. Interference is reduced even further by the power switch's ultra-low noise insulation.

  • Alu Rubber Platter
  • Anti Skating
  • Balanced S-Tonearm
  • Direct Drive
  • Gold Plated Terminals
  • HiFi Sound
  • High Damping
  • Low Vibration
  • Piano Finish
  • Three Speeds
  • Universal Connection
  • VTA
  • Ortofon 2M Blue
  • Massive Wooden Plinth
  • Hi-Res Audio Output
  • Ultra Low Noise Design
  • Perfectly Balanced Rotation

Features

  • Quartz-controlled, premium HiFi turntable
  • Super high torque, direct drive DC motor with ultra-precise rotation speed
  • Quick start-up and drift-off rotation speed less than +/-0.03%
  • Full manual operation with motor control-switch to select three different speeds (33, 45 and 78 RPM)
  • Precision machined, extra heavy aluminium die-cast platter for a perfectly balanced rotation (305 mm diameter, 22.5 mm thick, 2.1 kg)
  • Deadening rubber covering rear platter surface & special 5 mm rubber mat for optimized resonance control and damping
  • Sunk-in platter cavity construction
  • Static-balanced S-shaped tonearm with VTA adjustment
  • Adjustable anti-skating wheel for optimal pick-up tracking
  • Pre-installed Ortofon 2M Blue cartridge for excellent dynamics and sound resolution
  • Universal headshell connector (SME) provides added flexibility
  • Counterweight supplied supports a wide variety of cartridges
  • Premium, high-resolution audio phono outputs (with separate grounding connection)
  • Gold-plated, corrosion-resistant audio connections (detachable power and RCA cables)
  • Built-in switching power with ultra-low noise isolation design
  • Rigid construction, with extra-heavy, solid MDF wooden plinth
  • Height-adjustable, shock-resistant insulator feet for effective decoupling
  • Timeless design with high-gloss, black piano finish

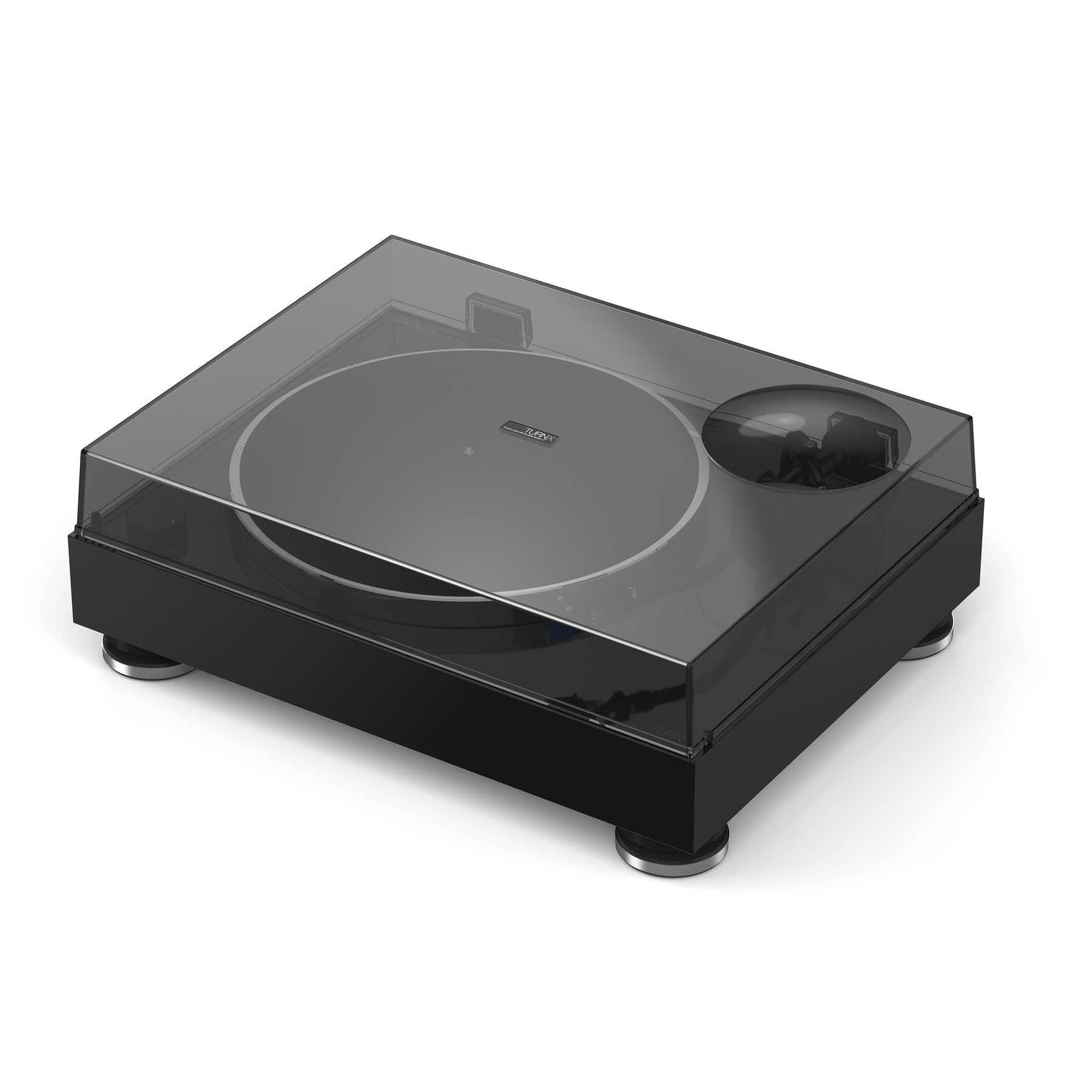

  • Accessories included: Turntable platter, dust cover, 2x dust cover hinges, balance counterweight, PHONO RCA cable with grounding cable, AC power cord, rubber mat, instruction manual, Ortofon 2M Blue cartridge & headshell

Technical Data

Turntable Section:
  • Type of turntable: Direct drive, fully manual
  • Drive: Quartz driven upper-torque direct drive with precision rotation
  • Motor: DC Motor, 16-Pole, 3-Phase, brushless
  • Rotation speeds: 33 1/3, 45 & 78 RPM
  • Starting Torque: More than 4500 g/cm
  • Start-up time / rpm change: Less than 0.3 sec.
  • Wow and Flutter: Less than 0.1% WRMS (JIS WTD)
  • S/N Ratio: More than 60dB (DIN-B)
  • Breaking System: Electronic brake
Turntable Platter:
  • Turntable Platter: Aluminium die-cast
  • 305 mm diameter
  • Weight About 2.1 kg
Tonearm Section:
  • Type: Static balanced S-Shape
  • Effective Length: 230 mm
  • Overhang: 15 mm
  • Tracking Error Angle: Less than 3 degrees
  • VTA Adjustment Range: 0-6 mm
  • Applicable Cartridge Weight: 17 – 25 g (incl. Headshell)
  • Anti-Skating Range: 0-3 g
  • Terminals: 1x PHONO Out (gold-plated), 1x GND Earth Terminal
Cartridge:
  • Type of cartridge: Ortofon 2M Blue
  • Output voltage at 1000 Hz, 5cm/sec.: 5.5 mV
  • Channel balance at 1 kHz: 1.5 dB
  • Channel separation at 1 kHz: 25 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency response: 20-20.000 Hz + 2 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force: 80 µm
  • Compliance, dynamic, lateral: 20 µm/mN
  • Stylus type: Elliptical
  • Stylus tip radius: r/R 8/18 µm
  • Tracking force range: 1.6-2.0 g (16-20 mN)
  • Tracking force, recommended: 1.8 g (18 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 1.3 kOhm
  • Internal inductance: 700 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 150-300 pF
  • Cartridge colour, body/stylus: Black/Blue
  • Cartridge weight: 7.2 g
General:
  • Power Supply: AC IN 100~240V, 50/60 HZ
  • Power consumption: 3W
  • Dimensions: 460(W) x 367.3(D) x 172.6(H) mm
  • Weight: 10.35 kg
  • Incl.: dust cover + 2x hinge, rubber mat, power supply cable, RCA cable with grounding connection (gold-plated), Headshell with Ortofon 2M Blue (pre-installed), turntable platter, operation manual & counterweight
