Turn5

Outstanding performance, precision design and fidelity sound.

Reloop HiFi - TURN5

Direct Drive
HiFi Turntable System

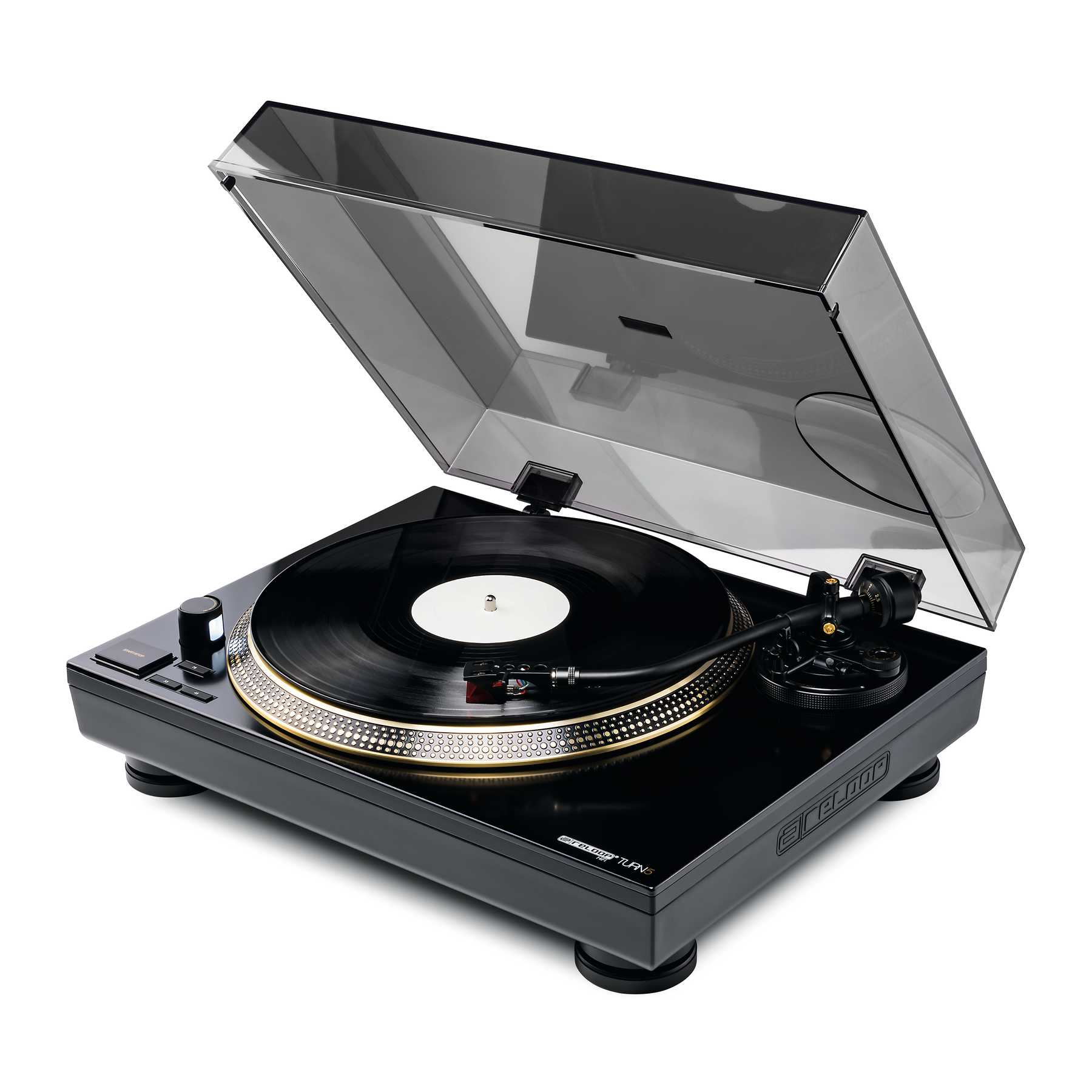

With TURN5 Reloop HiFi is launching a quartz-controlled, direct-drive turntable that meets the highest sound requirements. Using our expertise we have developed a new HiFi turntable, which with its technical sophistication is the best in its class.

Reloop HiFi - TURN5

Powerful DC motor &
low-resonance die-cast platter

The brushless, direct-drive DC motor ensures a powerful drive at a very consistent rotation and the TURN5 has been produced using die-cast precision manufacturing techniques. A dampening rubber base on the turntable system eliminates any unwanted resonance and the accompanying 5 mm rubber coating also protects against vibrations so that nothing stands in the way of the exceptional sound reproduction.

Reloop HiFi - TURN5

High-quality control elements & connections

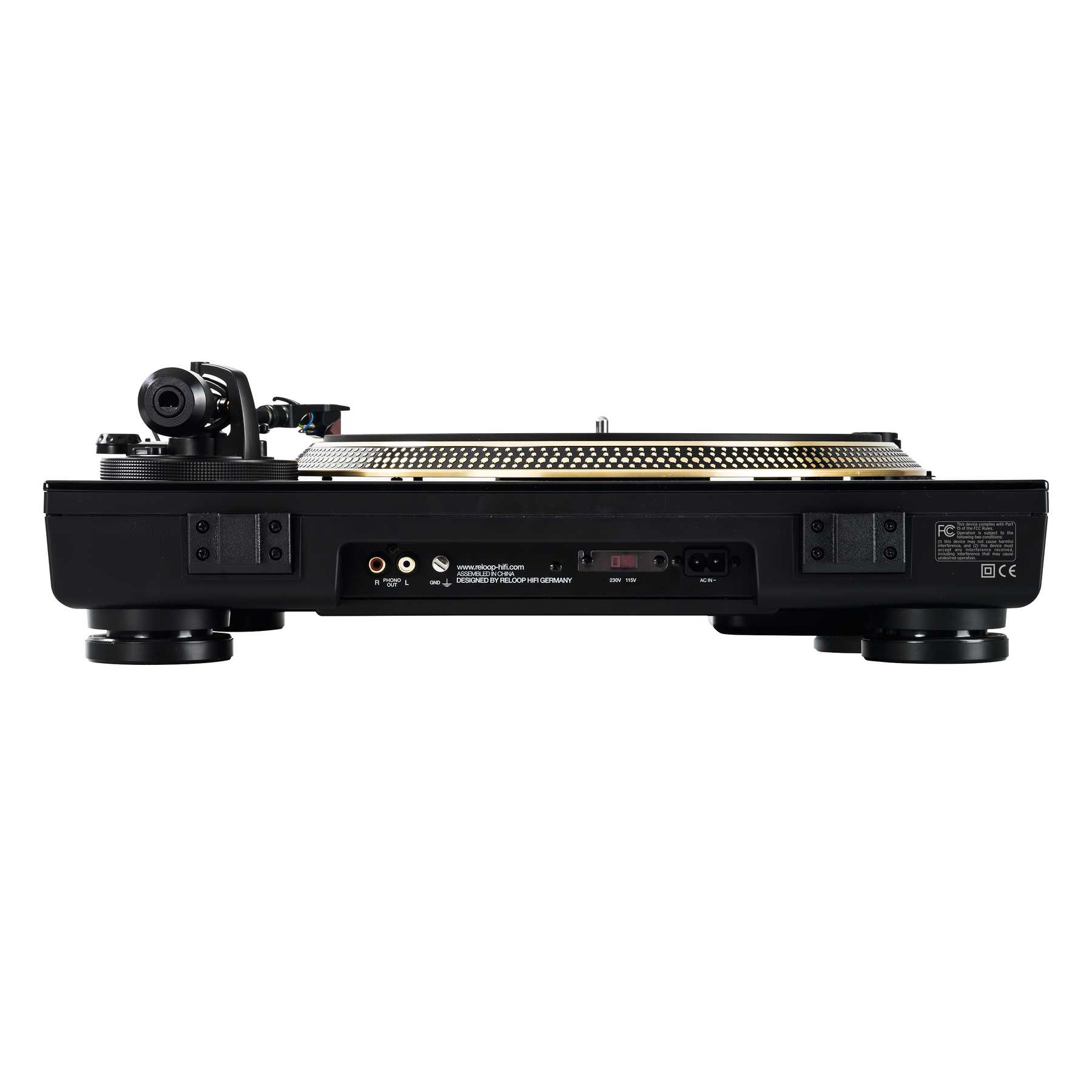

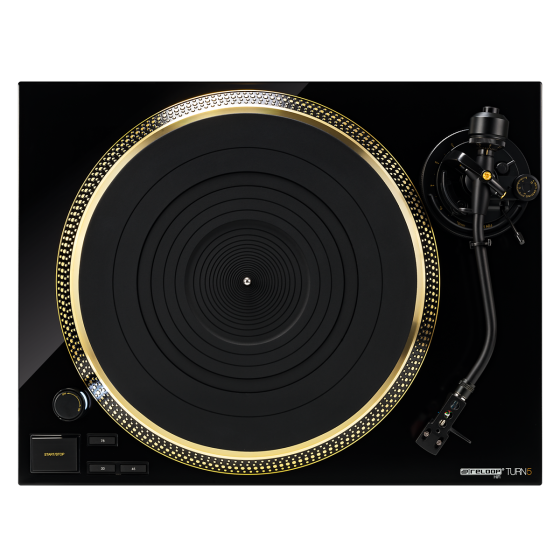

The three motor speeds can be selected with convenient controls on the top to 33 1/3, 45 or 78 rpm. This means the TURN5 can also play back old shellac records with a corresponding mono-system (not included). Next to this is the large start/stop knob. The universal locking mechanism (SME) on the tonearm allows for a quick and easy headshell exchange. Also, with the supplied counterweight a whole range of cartridges can be used as this also supports heavier pick-ups. On the rear panel of the TURN5 is a gold-plated phono output pair (RCA) with a separate earth connection to prevent any potential interference. The terminal for all cable connections has been recessed to protect them as much as possible. For a simple exchange, the power cable and the RCA cable can be removed.

Reloop HiFi - TURN5

Static balanced S-tone arm & Hi-tech Ortofon
cartridge system

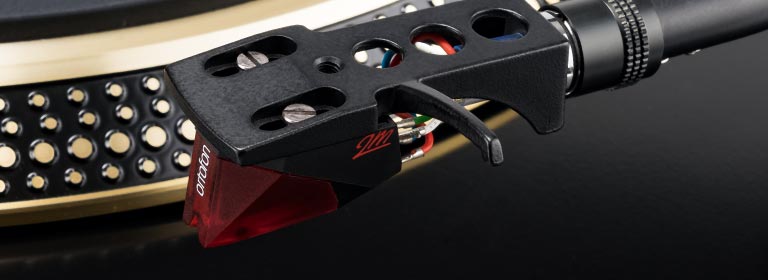

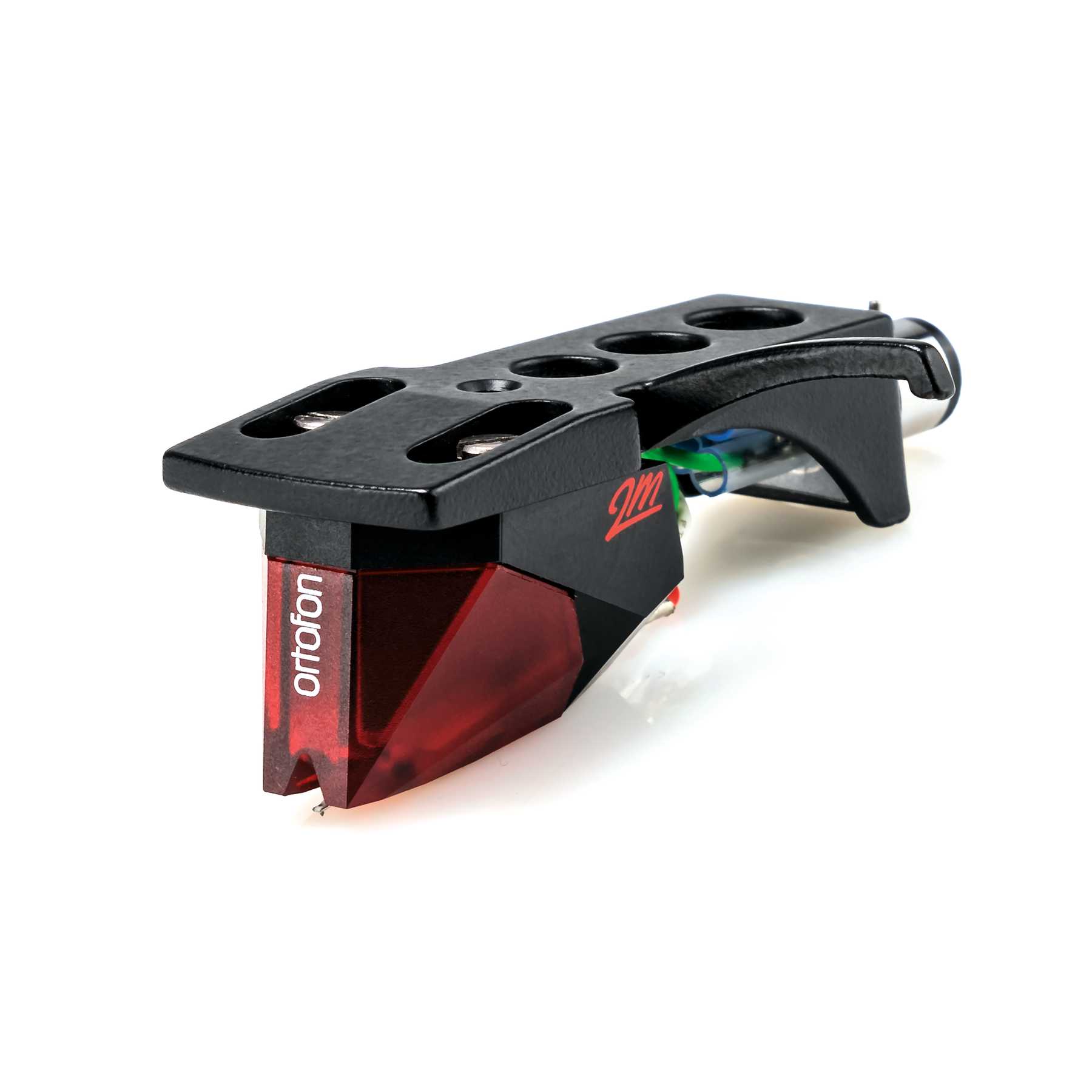

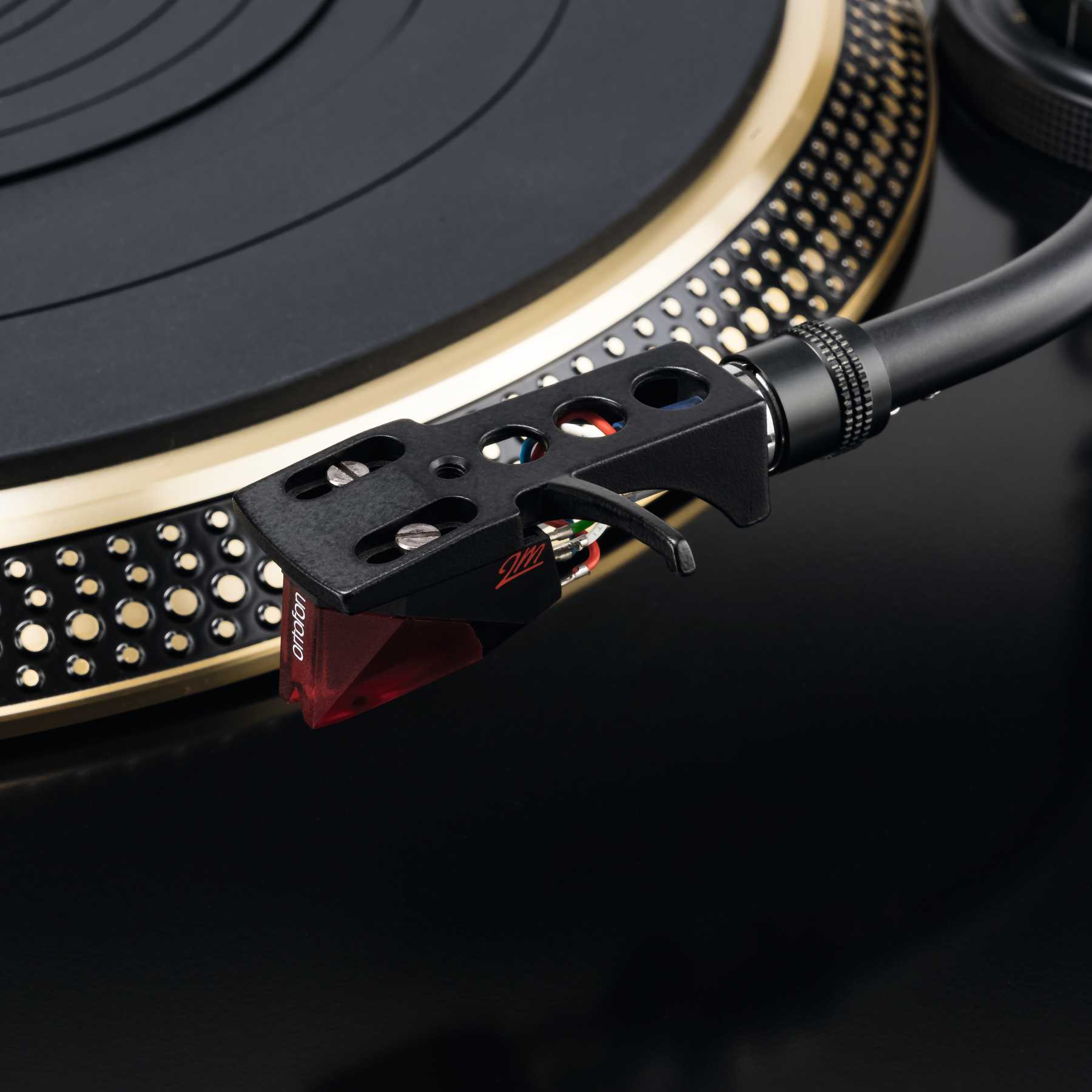

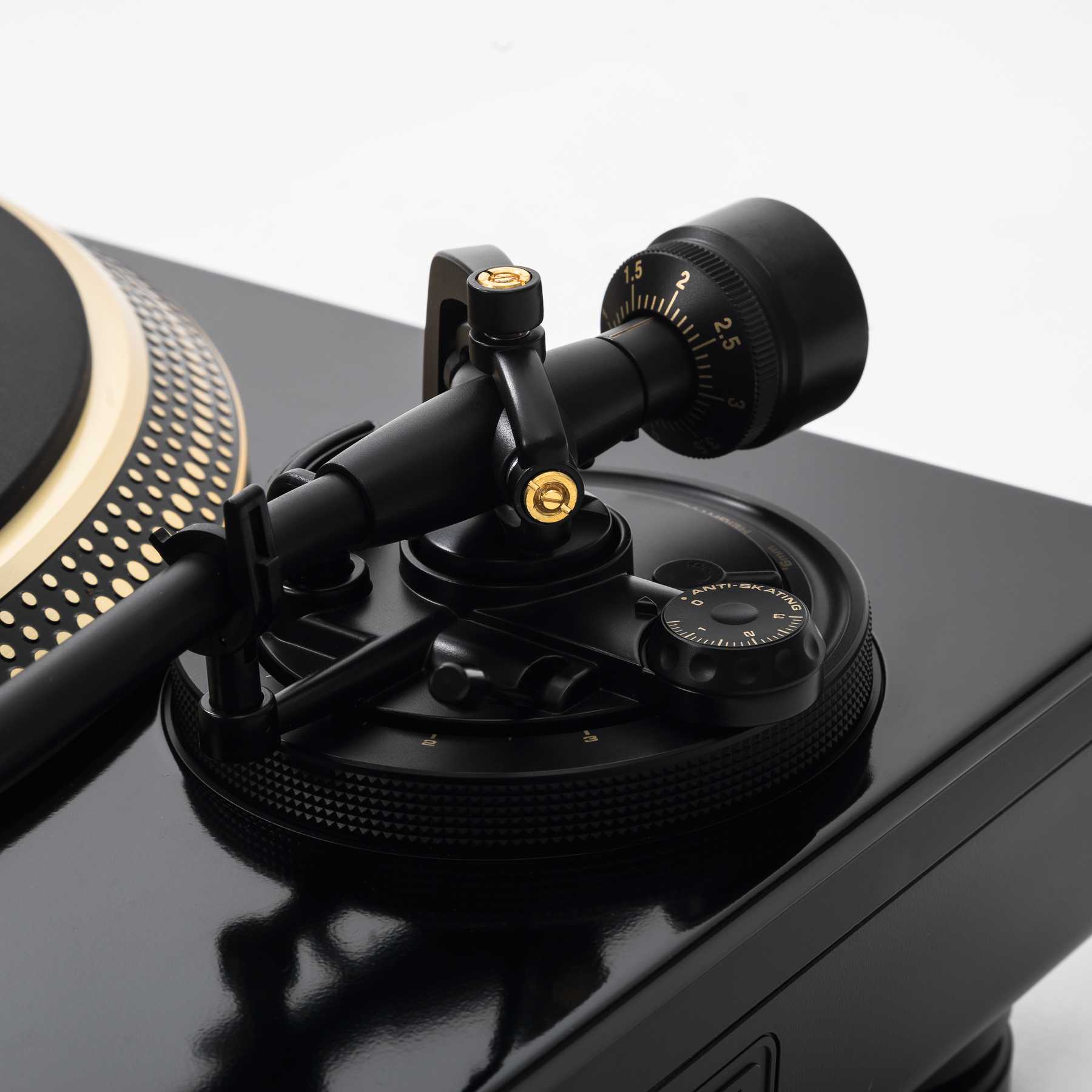

The TURN5 uses a statically balanced S-shape tone arm. This is supplied, along with the hydraulic lift and an anti-skating setting, with a convenient tone arm height adjustment with locking VTA. This guarantees optimum performance of the cartridge and an accurate reproduction of the recording medium. The supplied Ortofon 2M Red cartridge is already pre-mounted on a headshell and stands out thanks to its elliptical cut with phenomenal sound quality.

Reloop HiFi - TURN5

Elegant design in a particularly heavy-duty construction

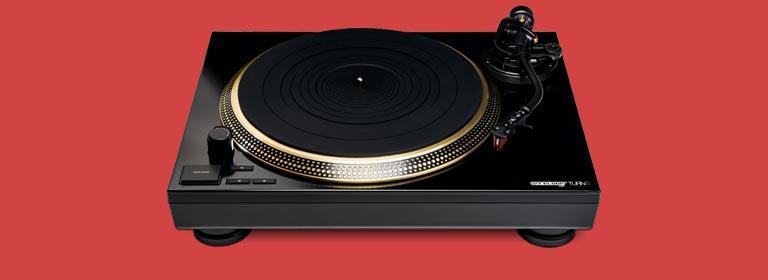

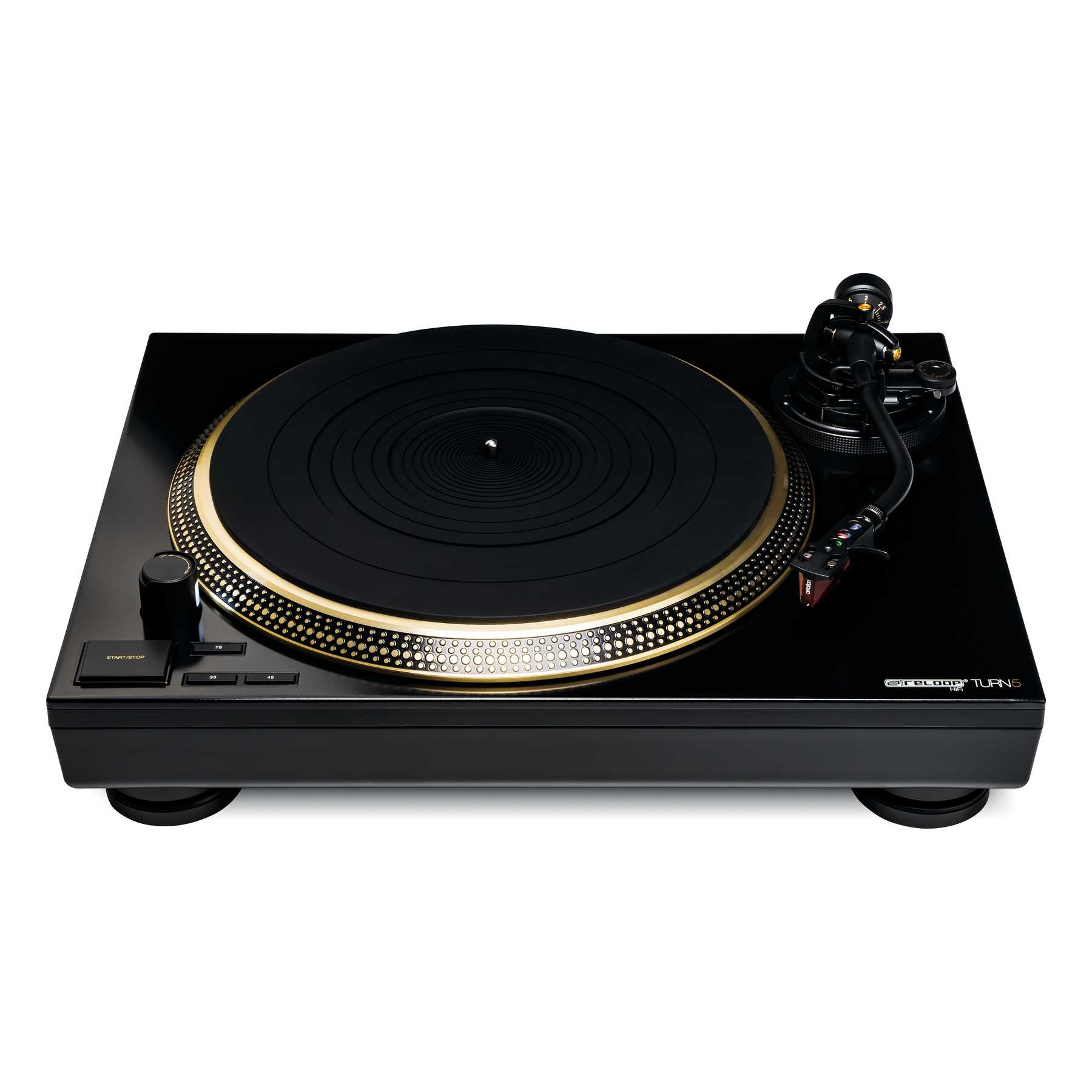

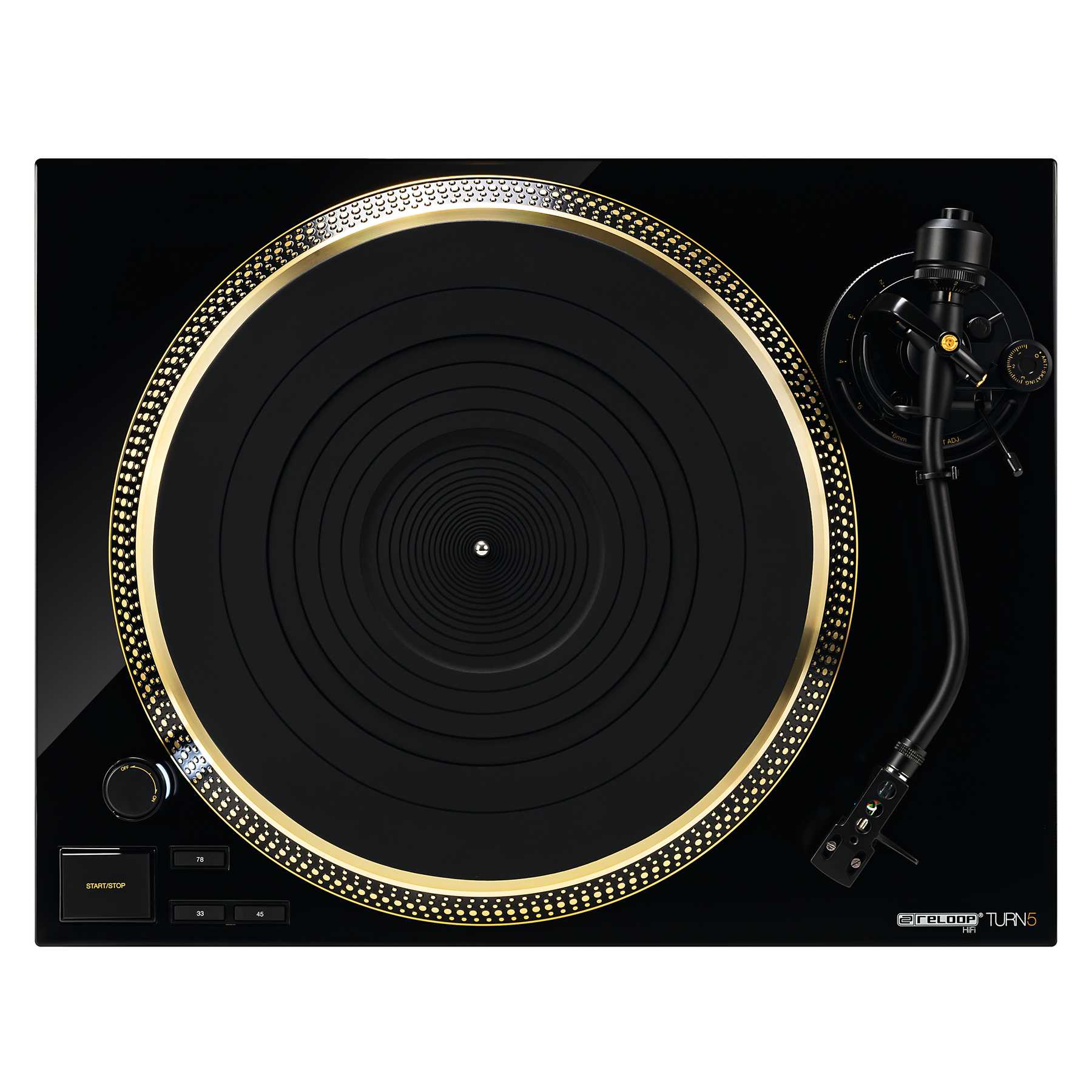

The housing is built on a heavy-duty metal construction with shock-absorbing feet in order to isolate unwanted vibrations as much as possible and reduce ambient noise. The combination of several materials provides additional stiffness to the housing. With its deep black piano finish, visually the TURN5 is elegant and timeless. The gold-plated turntable hovers harmoniously above the cover plate and focuses the view on the important thing – the record.

Reloop HiFi - TURN5

Reloop Turn 5

Direct Drive HiFi Turntable System

  • Powerful direct-drive DC motor for a stable rotation
  • Heavy, low-resonance die-cast platter
  • VTA-adjustable Tonearm with a Ortofon 2M red cartridge
€749.00
Direct Drive HiFi Turntable System With TURN 5 Reloop HiFi is launching a quartz-controlled, direct-drive turntable that meets the highest sound requirements. Using our expertise we have developed a new HiFi turntable, which with its technical sophistication is the best in its class. Powerful DC motor & low-resonance die-cast platter The brushless, direct-drive DC motor ensures a powerful drive at a very consistent rotation and the TURN 5 has been produced using die-cast precision manufacturing techniques. A dampening rubber base on the turntable system eliminates any unwanted resonance and the accompanying 5 mm rubber coating also protects against vibrations so that nothing stands in the way of the exceptional sound reproduction. Static balanced S-tone arm & Hi-tech Ortofon cartridge system The TURN 5 uses a statically balanced S-shape tone arm. This is supplied, along with the hydraulic lift and an anti-skating setting, with a convenient tone arm height adjustment with locking VTA. This guarantees optimum performance of the cartridge and an accurate reproduction of the recording medium. The supplied Ortofon 2M Red cartridge is already pre-mounted on a headshell and stands out thanks to its elliptical cut with phenomenal sound quality. High-quality control elements & connections The three motor speeds can be selected with convenient controls on the top to 33 1/3, 45 or 78 rpm. This means the TURN 5 can also play back old shellac records with a corresponding mono-system (not included). Next to this is the large start/stop knob. The universal locking mechanism (SME) on the tonearm allows for a quick and easy headshell exchange. Also, with the supplied counterweight a whole range of cartridges can be used as this also supports heavier pick-ups. On the rear panel of the TURN 5 is a gold-plated phono output pair (RCA) with a separate earth connection to prevent any potential interference. The terminal for all cable connections has been recessed to protect them as much as possible. For a simple exchange, the power cable and the RCA cable can be removed. Elegant design in a particularly heavy-duty construction The housing is built on a heavy-duty metal construction with shock-absorbing feet in order to isolate unwanted vibrations as much as possible and reduce ambient noise. The combination of several materials provides additional stiffness to the housing. With its deep black piano finish, visually the TURN 5 is elegant and timeless. The gold-plated turntable hovers harmoniously above the cover plate and focuses the view on the important thing – the record.
  • Anti Skating
  • Balanced S-Tonearm
  • DIE-Cast Alu Platter
  • Direct Drive
  • Gold Plated Terminals
  • HiFi Sound
  • High Damping
  • Low Vibration
  • Piano Finish
  • Three Speeds
  • Universal Connection
  • VTA

Features

  • Quartz-Controlled HiFi turntable with high torque
  • Brushless Direct Drive DC Motor
  • Precision machined Die-Cast Aluminium Turntable Platter for a perfectly balanced rotation
  • Deadening Rubber covering rear platter surface & special 5mm rubber mat for optimized resonance control and damping
  • Static-balanced S shaped tonearm with VTA adjustment
  • Adjustable anti-skating dial for improved cartridge tracking
  • Pre-installed Ortofon 2M Red cartridge
  • Integrated motor control selector for conveniently selecting three different speeds (33, 45 and 78 RPM)
  • Universal Headshell Connector provides added flexibility
  • High Quality Phono outputs (with separate grounding connection)
  • Gold-plated, corrosion resistant audio outputs (power and RCA cables detachable)
  • Sunk-in terminal cavity for protected connection
  • Especially heavy metal construction, rigid cabinet design and Shock-resistant feet for effective decoupling
  • Supplied counterweight supports a wide variety of cartridges
  • Elegant design with deep black Piano Finish and a fully gold anodised Platter
  • Included Accessories: Turntable Platter, Dust Cover, 2x Dustcover hinges, Balance Counter Weight, PHONO RCA Cable with earth lead, AC power supply cord, Rubber Mat, Instruction Manual, Ortofon 2M Red cartridge & headshell

Technical Data

Turntable Section:
  • Type: Direct Drive Manual Turntable System
  • Drive: Quartz driven upper-torque direct drive
  • Motor: 16 pole, 3 phase, brushless DC motor
  • Turntable Speeds: 3 speeds, fully manual (33 1/3, 45, 78 rpm)
  • Starting Torque: 4500 g/cm
  • Start-up time / rpm change: less than 0.2 sec.
  • Wow and flutter: 0.01% WRMS
  • S/N Ratio: More than 55 dB (DIN-B)
  • Brake system: electronic brake
Turntable Platter:
  • Material: aluminium die-cast
  • Diameter: 332 mm
  • Weight: About 1.8 kg (including rubber mat)
Tonearm Section:
  • Type: Universal Static Balanced S-Shaped
  • Effective Length: 230 mm
  • Overhang: 15 mm
  • Tracking Error Angle: Less than 3 degree
  • Offset Angle: 22°
  • Stylus Pressure: 0 - 4 g
  • Adjustable Tonearm Base (VTA): 0-6 mm
  • Applicable Cartridge Weight: 3.5~8.5 g (including headshell is 13~18 g)
  • Anti-Skating Range: 0 – 3 g
  • Effective tonearm mass: 20 g (incl. headshell)
Terminals:
  • 1x PHONO Out (gold-plated), 1x GND Earth Terminal
General:
  • Power supply: AC 115/230 V, 60/50 Hz (EU/US), AC 100 V, 50/60 Hz (JP)
  • Power Consumption: 9 W
  • Dimensions: 458 (W) x 368.3 (D) x 162.4 (H) mm
  • Weight: approx. 12.8 kg
Included Accessories:
  • Turntable Platter, Dust Cover, 2x Dustcover hinges, Balance Counter Weight, PHONO RCA Cable with earth lead, power cord, Rubber Mat, Instruction Manual, Ortofon 2M Red cartridge & headshell
