Features
- Authentic HiFi turntable with precision belt drive

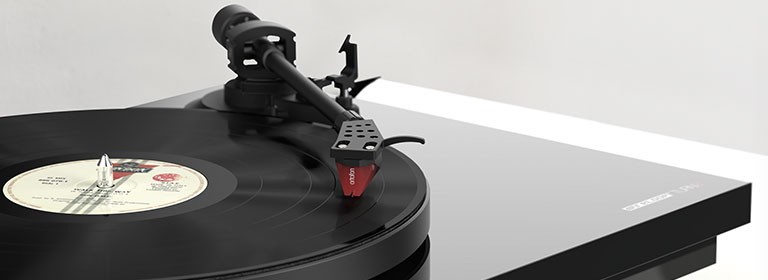

- Supplied with pre-assembled Ortofon 2M Red cartridge
- Optimised tonearm design for optimal tracking accuracy with flexible SME mounting
- Integrated high-quality preamplifier, can be switched on/off (phono/line output)

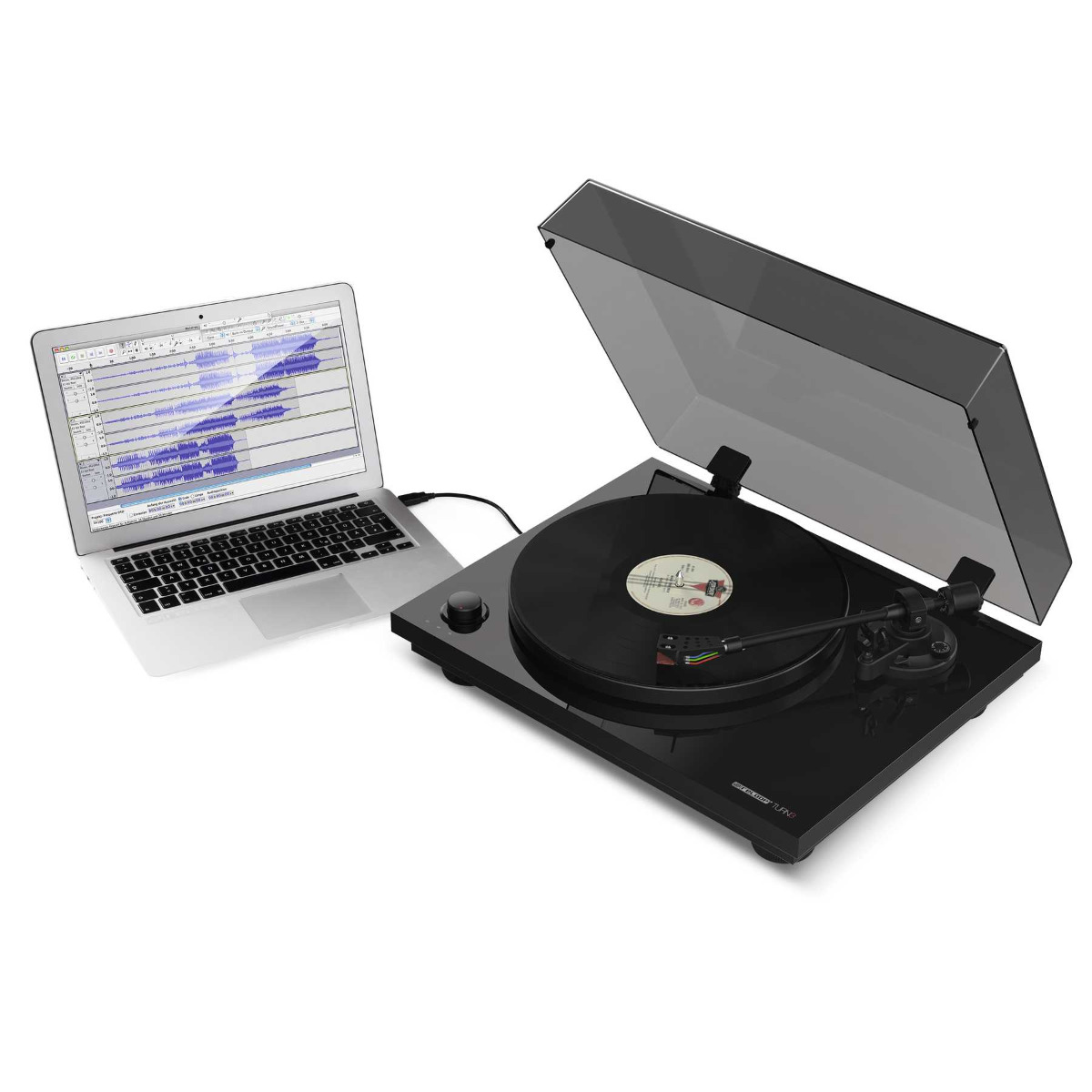

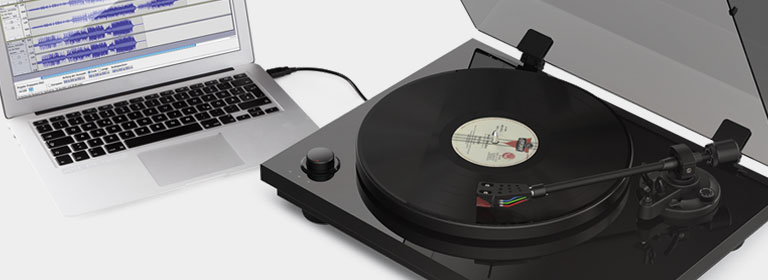

- USB recording function: recording and digitalisation of vinyl via simple USB connection for PC/Mac
- Semi-automatic stop function (can be activated optionally)
- Manual tonearm lift for analogue playback pleasure
- Low-vibration DC motor
- Integrated motor control with large speed selector switch (33/45/78 RPM)
- External DC power supply for trouble-free operation (100-230 V / 12 V / 500 mA)
- Precision-machined die-cast aluminium platter for resonance optimisation
- Infinitely adjustable anti-skating system with rotary wheel for optimum tracking accuracy
- Gold-plated, anti-corrosion connectors (all cables removable)
- Special turntable feet for effective decoupling
- High-gloss piano-finish cabinet
- On/Off switch on the back of the unit
- Incl. Ortofon 2M Red cartridge pre-mounted on headshell, counterweight, dust cover incl. hinges, felt mat, aluminium turntable, 7" aluminium adapter, RCA & USB cable and international power supply (UK/EU/US)
Technical Data

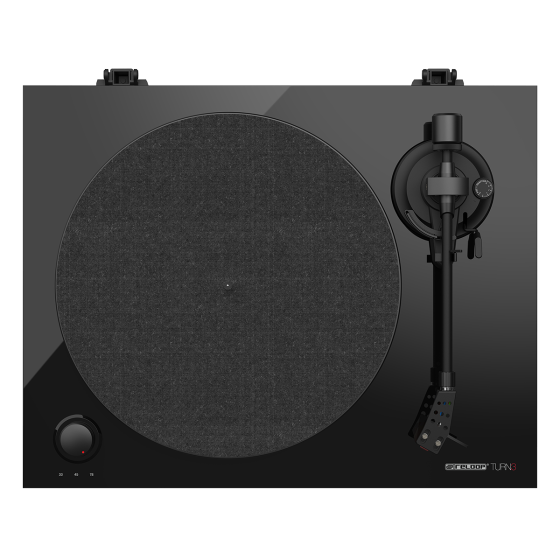

TURN 3 MK2:- Type of turntable: Belt drive
- Motor: DC Motor
- Rotation speeds: 33 1/3, 45 & 78
- Wow and Flutter: 0.2% WRMS
- Analogue Output: Phono / Line, switchable

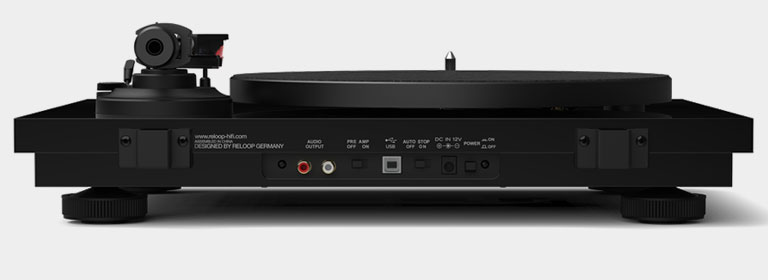

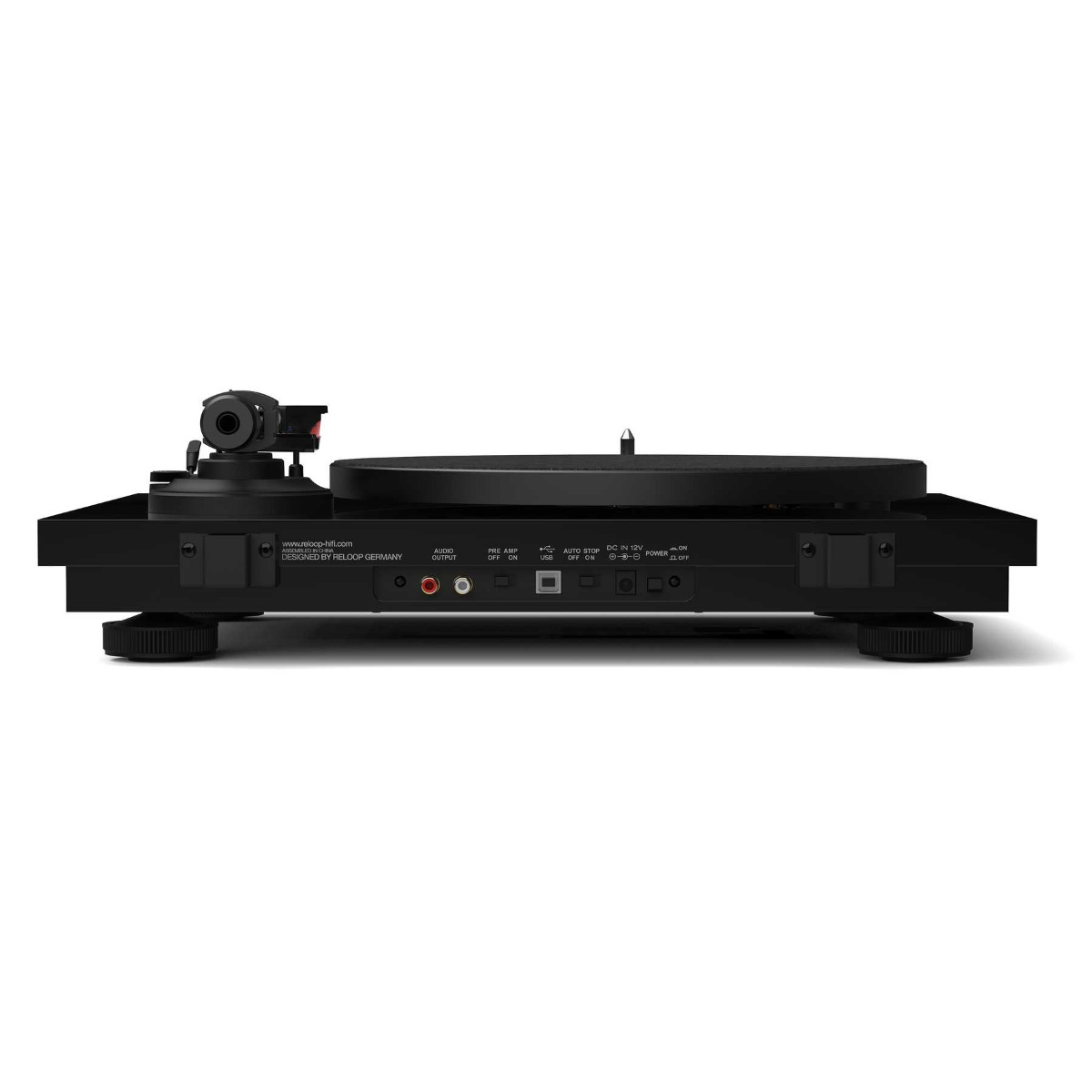

- Connections: RCA Audio output (gold-plated), USB type B
- Phono Output Level: 4.0 mV (with Ortofon 2M Red)
- Line Output Level: 224 mV (with Ortofon 2M Red)
- Tone Arm type: Straight
- Effective Arm Length: 223.6 mm
- Effective tonearm mass: 21.4 g
- Overhang: 18.6 mm
- Tracking force Range: 18 mN
- Platter diameter: 300 mm
- Anti-Skating adjustment: Yes
- Type of cartridge: MM (Ortofon 2M Red)
- Power consumption: 6W
- S/N: >60 dB or higher
- USB Audio Output with 48 kHz / 16-Bit
- USB Funktion: USB rec. function
- Supported Operating System: Windows & Mac
- Dimensions: 450 x 352 x 138.7 mm (incl. Dust cover)
- Weight: 6.5 kg
- Output voltage at 1000 Hz, 5cm/sec.: 5,5 mV
- Channel balance at 1 kHz: 1,5 dB
- Channel separation at 1 kHz: 22 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at - 3dB: 20-22.000 Hz
- Frequency response: 20-20.000 Hz + 3 / - 1 dB
- Tracking ability at 315Hz at recommended tracking force: 70 μMm
- Compliance, dynamic, lateral: 20 μMm
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 μMm
- Tracking force range: 1,6-2,0g (16-20 mN)
- Tracking force, recommended: 1,8 g (18 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 1,3 kOhm
- Internal inductance: 700 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150-300 pF
- Cartridge colour, body/stylus: Black/Red
- Cartridge weight: 7.2 g
